RGEAS3.0-1000-A - Datasheet
MBA
Category Information

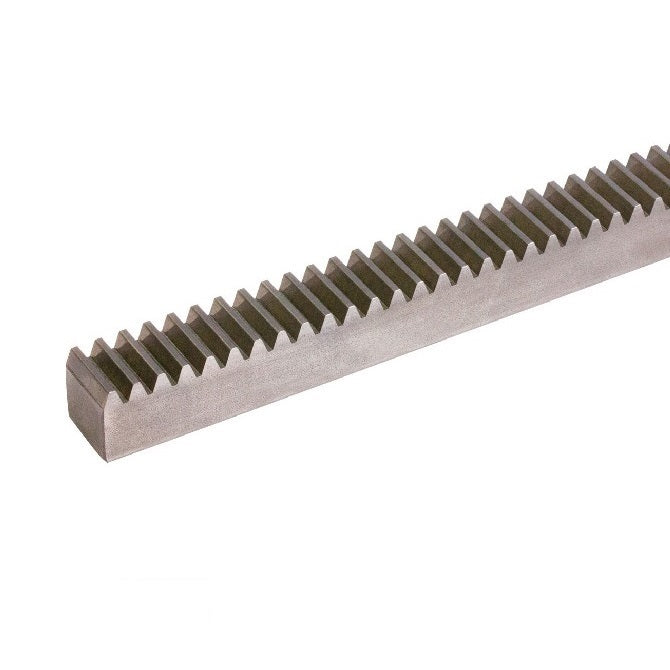

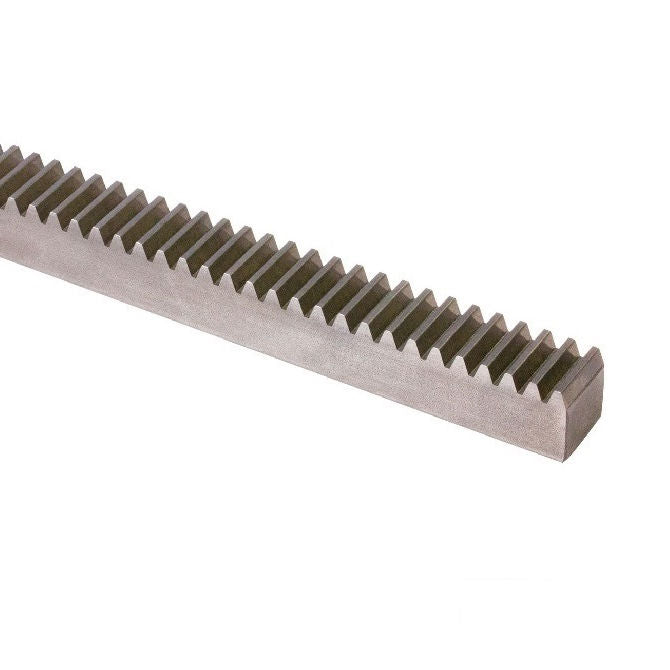

Gears - Rack - Metric - Module 3 - StainlessStainless Module 3 Metric Rack Gears. 20 Degree Pressure Angle. Stainless Steel.
- Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
- An expanded range may be available on special order. Please enquire.
- Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
Product Data
- Length (L)
:
999.030
mm
(Equiv. 39.332 in.) - Face Width (fw)
30.000
mm
(Equiv. 1.181 in.) - Height (h)
30.000
mm
(Equiv. 1.181 in.) - Pitch Type Module 3
- Pressure Angle 20 °
- Precision ISO CuZn39Pb3
- Info Back Tapped
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi RGEAS3.0-1000-A
- RGEAS301000A
