MSF-240M-CGC - Datasheet
MBA
Category Information

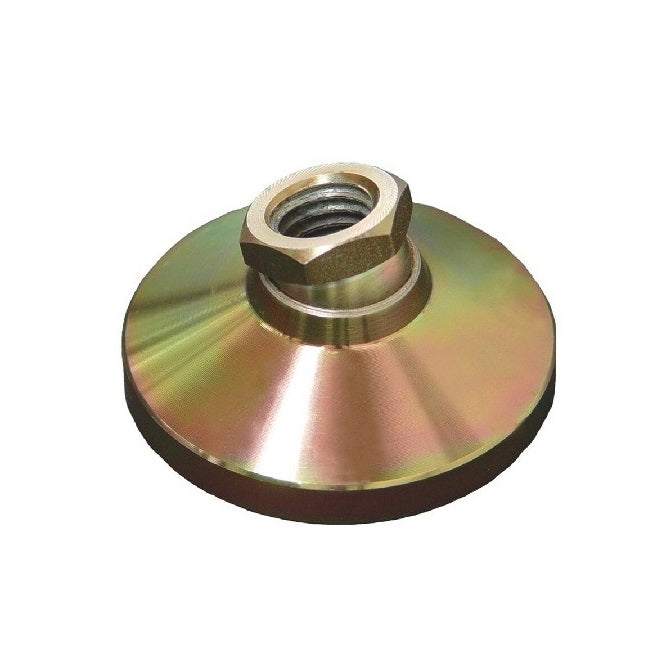

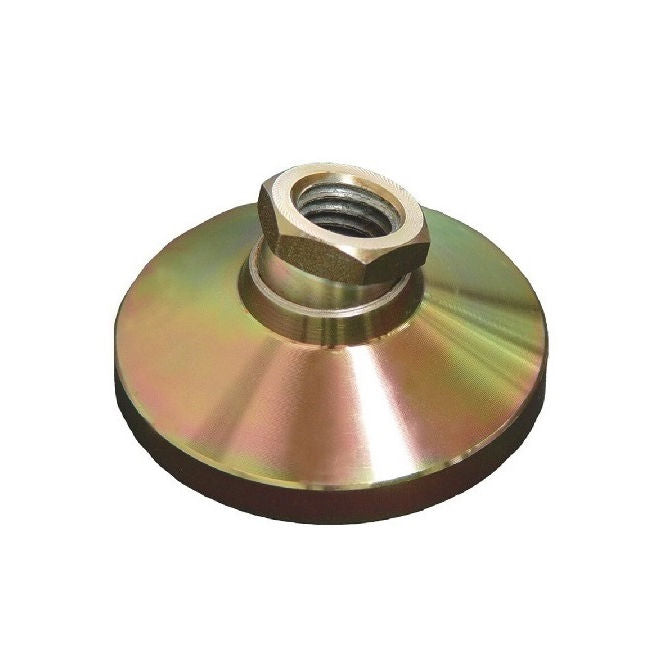

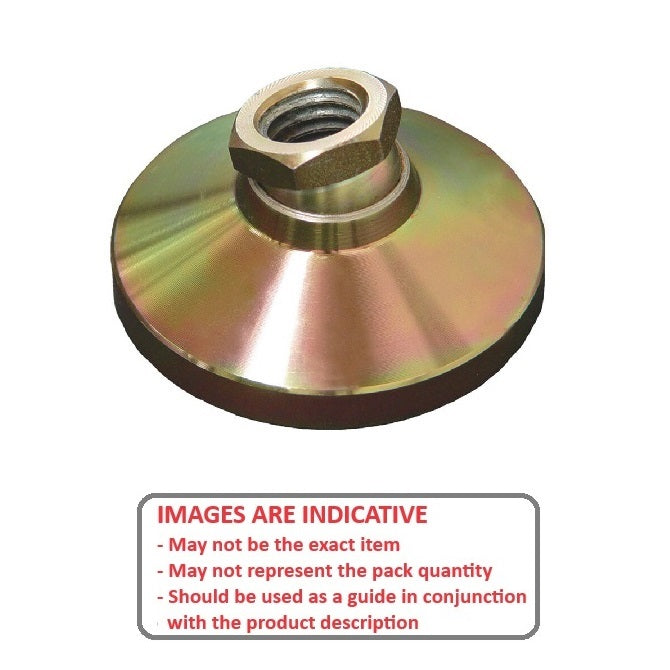

Mounts - Levelling Socket - Swivel - Standard - Gold ChromateGold Chromate Standard Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M24 (24x3mm)
- Base Diameter (D)
102.0
mm
(Equiv. 4.016 in.) - Foot Height (C)
48.0
mm
(Equiv. 1.89 in.) - Min. Thread Depth 20.6 mm
- Base Height (E) 10.00 mm
- Load Rating 9980 Kg
- Steel
- Finish Gold Chromate
- Hex Flats (B) 35.00 mm
- Material Gold Chromate
Product Compliance and Data
Additional Resources
Cross References
- MLF9980M24G
- HVLM-35
- HVLM35
