MSF-254C-C-2LH - Datasheet
MBA
Category Information

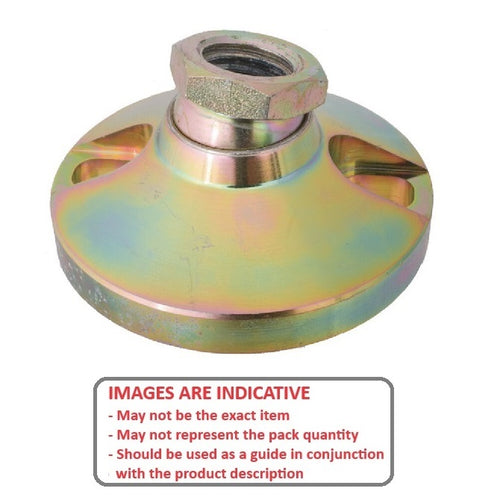

Mounts - Levelling Socket - Swivel - With Lag HolesWith Lag Holes Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches. Lag holes alow base to be secured.
- An expanded range may be available on special order. Please enquire.
- Hardened ball prevents galling and forms it's own seat.
- Large diameter pad design assures solid support.
- Zinc plated with gold chromate finish.
Product Data
- Thread Size (A) : 1-8 UNC (25.4mm)
- Base Diameter (D)
101.6
mm
(Equiv. 4 in.) - Foot Height (C)
36.5
mm
(Equiv. 1.437 in.) - Base Height (E) 27.76 mm
- Load Rating 9980 Kg
- Gold Chromate
- Cap Screw to Suit (I) 1/2-13 UNC (12.700mm)
- H 82.042 mm
- Hex Flats (B) 34.925 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MSF9980254CLH
- RSL-2002
- RSL2002
