MMI-0998-H - Datasheet
MBA
Category Information

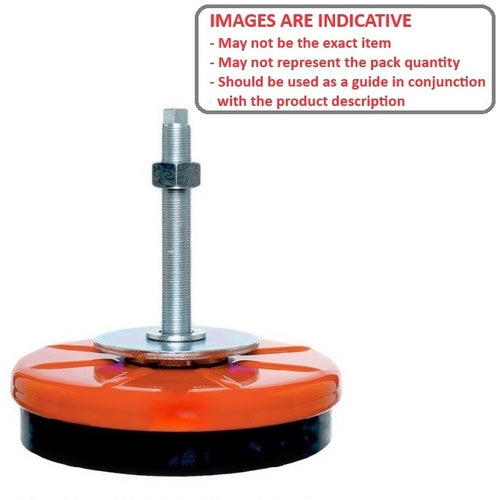

Mounts - Machinery Industrial - Heavy DutyHeavy Duty Machinery Industrial Mounts. High strength machined components. Rapid installation and leveling. 80% vibration reduction. Vertical and horizontal isolation.
- For milling mchines, presses, injection molding, packaging machines.
- Industrial machine mount designed with high strength construction for reduction of both shock and vibration.
- Prevents vibration from affecting other machines and protects mounted equipment from external vibration effects.
- Provides precision leveling with large support plate and meets OSHA standards by preventing machinery walking.
Product Data
- Load Capacity : 997.9 Kg

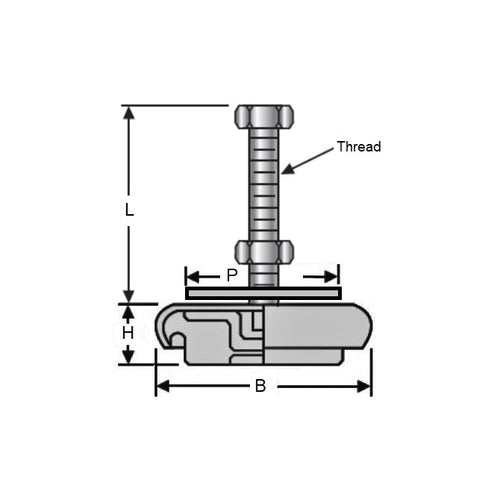

- Base Diameter
120.650
mm
(Equiv. 4.75 in.) - Plate Diameter
80.010
mm
(Equiv. 3.15 in.) - Height 45.974 mm
- Adjustment 12.954 mm
- Thread Size M16-1.5
- Thread Length 120.650 mm
- Non-Impact Machinery Load 997.902 Kg
- 125 Strokes per Min Load 453.592 Kg
- 180 Strokes per Min Load 362.874 Kg
- 200 Strokes per Min Load 272.155 Kg
- Material Rubber and Steel
Product Compliance and Data
Additional Resources
Cross References
- SX2
- SX-2
