MSF-254C-CBC - Datasheet
MBA
Category Information

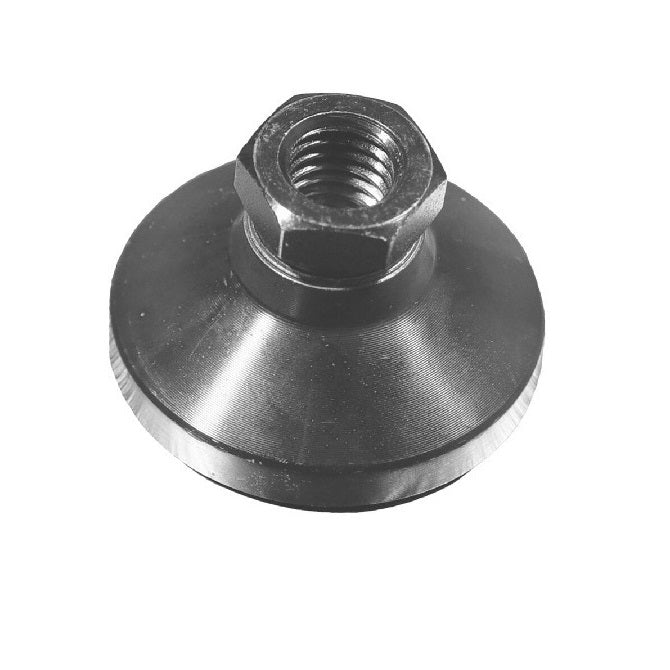

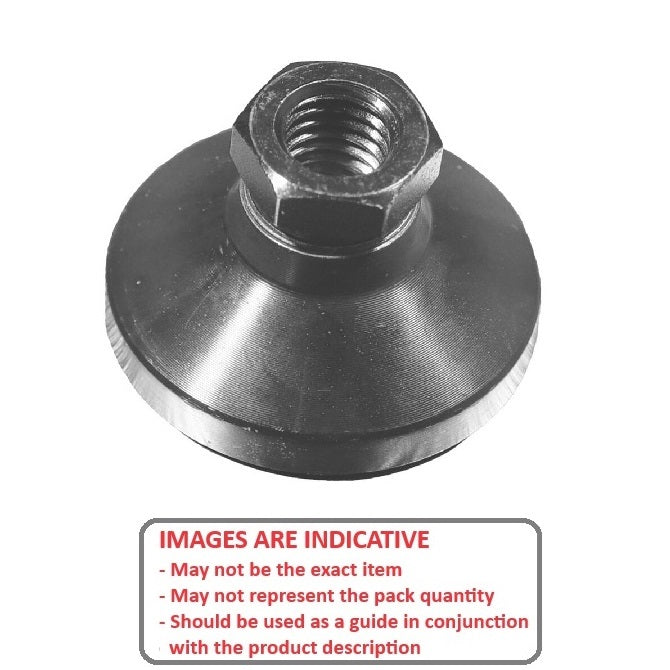

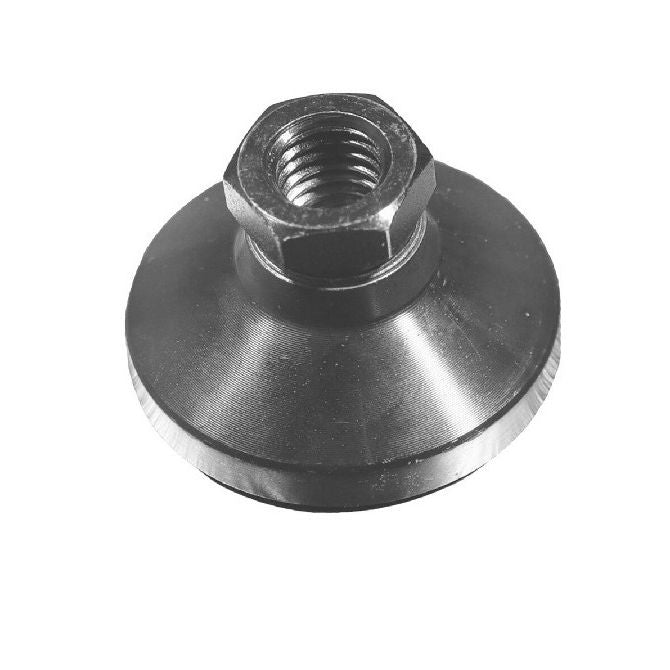

Mounts - Levelling Socket - Swivel - Black Chromate - StandardStandard Black Chromate Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 1-8 UNC (25.4mm)
- Base Diameter (D)
101.6
mm
(Equiv. 4 in.) - Foot Height (C)
47.6
mm
(Equiv. 1.874 in.) - Min. Thread Depth 20.6 mm
- Base Height (E) 10.32 mm
- Load Rating 9920 Kg
- Finish Black Chromate
- Hex Flats (B) 34.93 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 6103K139
- MSF9920254CB
- LBK4
- LBK-4
