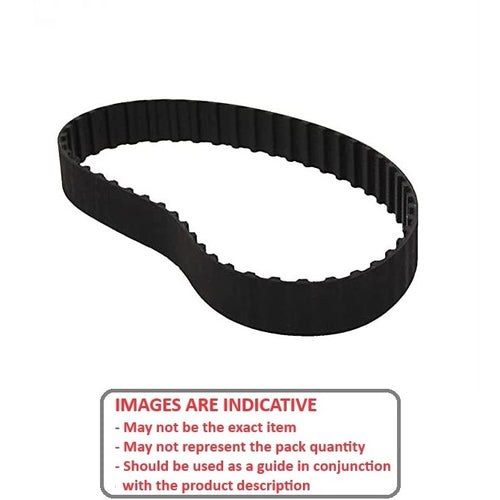

7.9mm Wide 2.073mm Pitch 40DP Inch Timing Belts. Standard Series Timing Belts 2.072mm or 0.0816 inch pitch. Also known as LT.

• Timing belts combined with timing pulleys, provide power transmission without slippage.
• Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
• Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
• Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
• Tooth Length (T) - 0.6mm
• Tooth Height (H) - 0.46mm
• Belt Height (W) - 1.2mm - Corner Radii ( r ) - 0.2mm
• Pitch (P) - 2.073mm (0.0816 inch)
