CCE-09208-CZY - Datasheet
MBA
Category Information

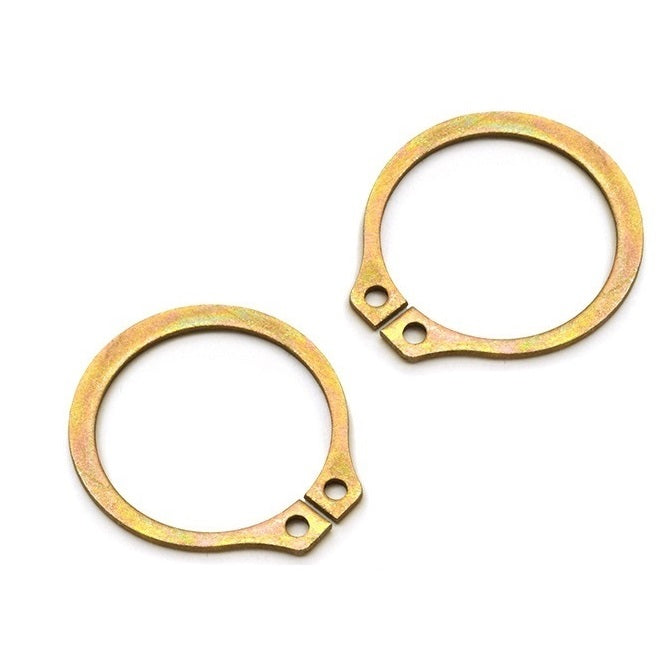

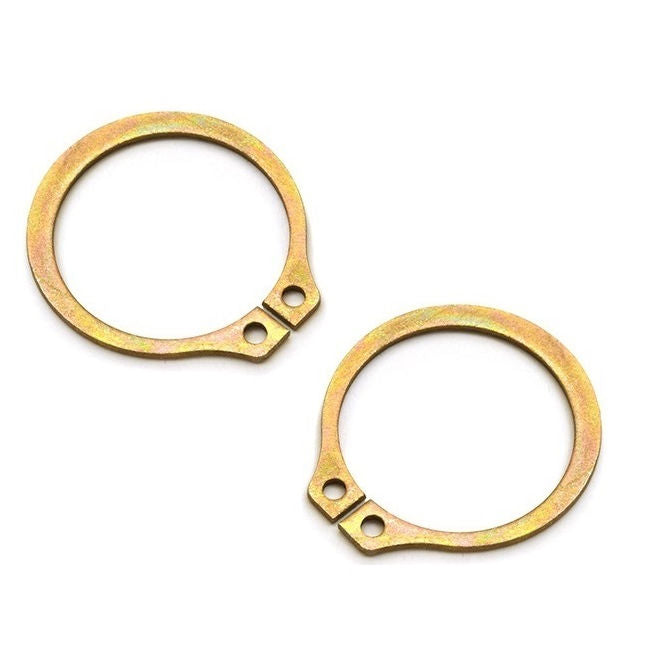

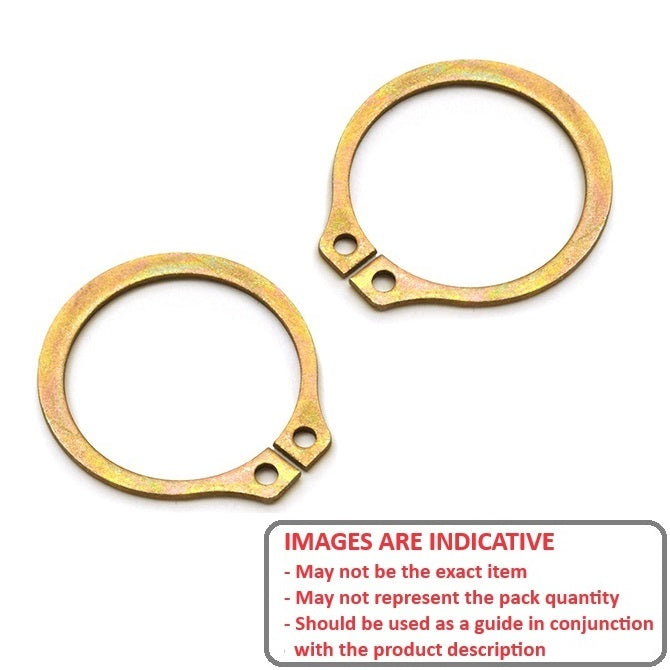

Retaining Rings - External - Circlips - Standard - Zinc PlatedZinc Plated Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Zinc plated carbon steel
Product Data
- Shaft Diameter (Ds)
:
92.08
mm
(Equiv. 3.625 in.) - Clip Thickness (T)
2.77
mm
+/- 0.152
(Equiv. 0.109 in.) - Groove Dia. (Dg)
87.25
mm
+/- 0.076
(Equiv. 3.435 in.) - Approx. Loose Circlip ID (A) 85.10 mm
- Groove Width (W) 3.10 mm
- Standard MIL-16624
- Material Carbon Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 98410A355
- NoCor SH-362-ZD
- SH362ZD
- N1400-0363AZD
- N14000363AZD
