P-080G-090-850P-CB-T3020 - Datasheet

MBA

Category Information

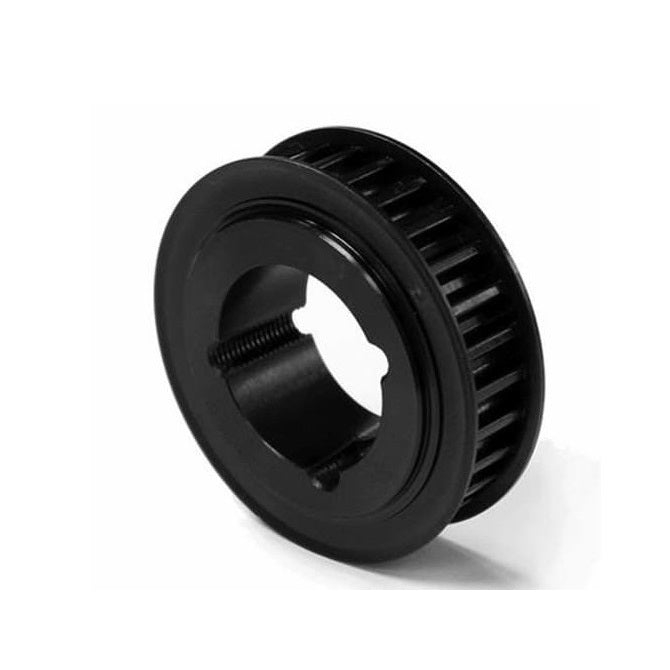

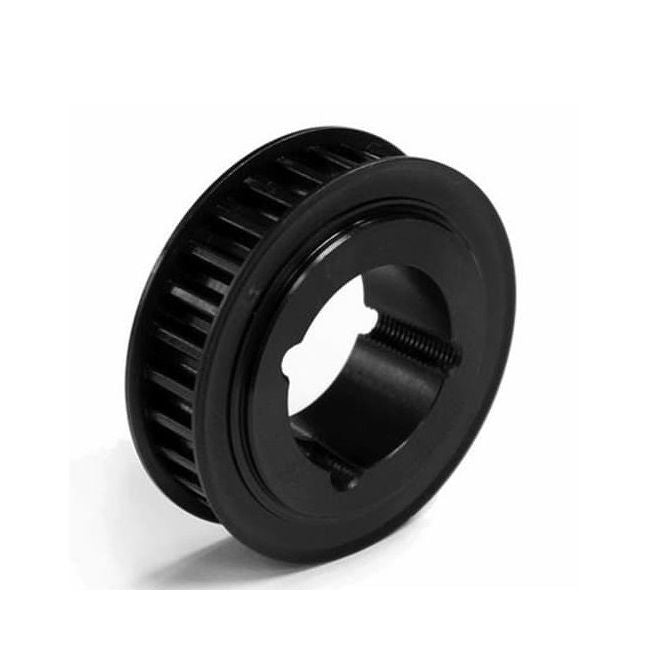

Pulleys - Metric Timing - 8.000mm Pitch - GT - 50mm Wide - Taperlock

Taperlock 50mm Wide GT 8.000mm Pitch Metric Timing Pulleys. Timing Pulleys to suit HTD 8.000mm Pitch Timing Belts. Suits belts 50mm wide. Use with GT2 or GT3 type belts.

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Black Oxide Coated Steel and Cast Iron
  • Match with a taperlock to suit your bore requirements

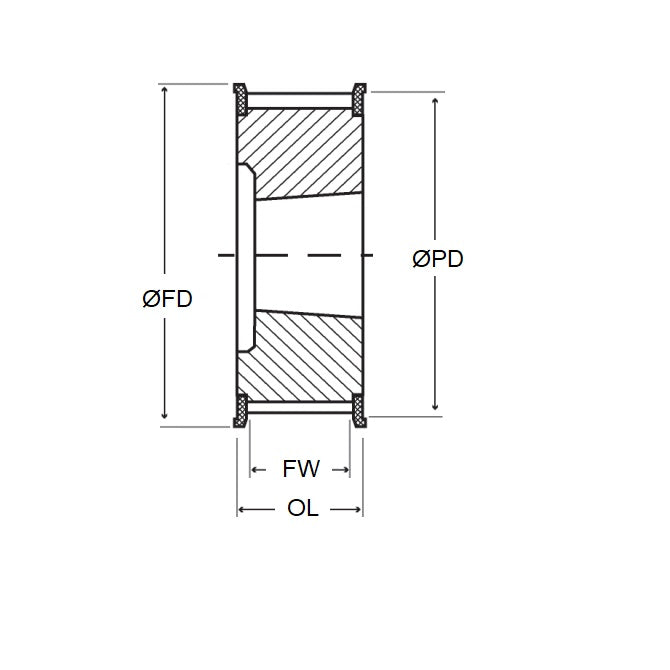

Product Data

  • Number of Teeth : 90
  • Max Belt Width 85.00 mm
    (Equiv. 3.346 in.)
  • Bore (d) Determined by Taperlock Series
  • Bore Type Suits Taperlock 3020
  • Type 2
  • Pitch Dia. (D) 229.08 mm
  • Overall Length 95.3 mm
  • Material Cast Iron
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Gates 90-8P85-3020
  • 908P853020
