P-020G-090-200-S4 - Datasheet

MBA

Category Information

Pulleys - Metric Timing Stock - 2.000mm Pitch - GT - 304 Stainless

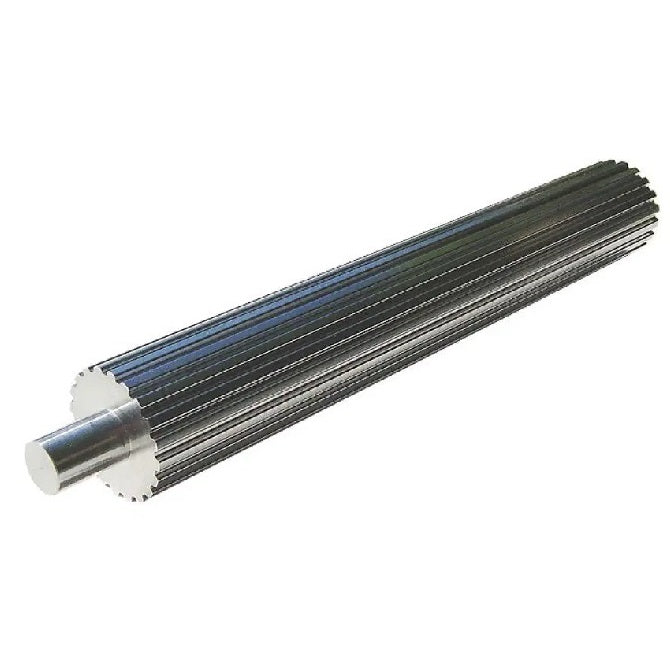

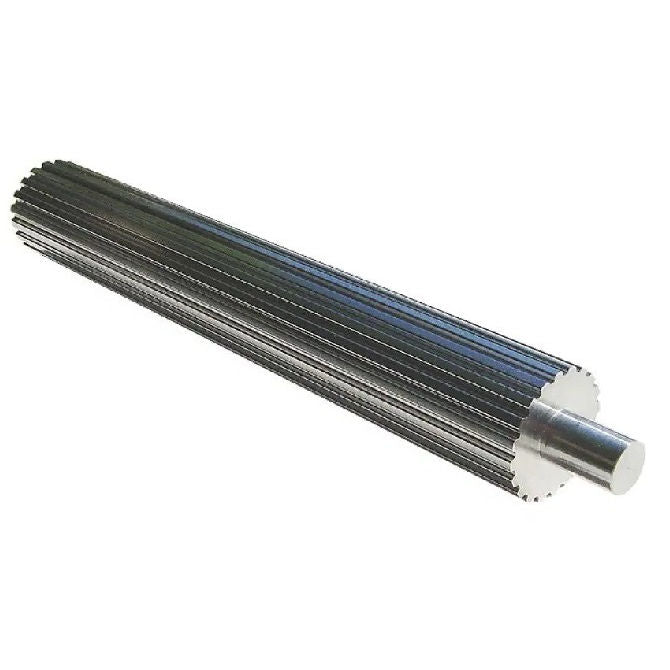

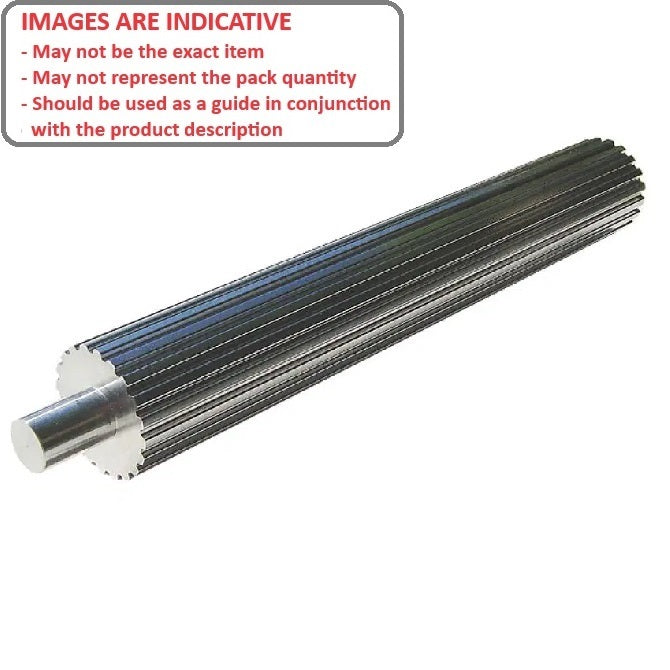

304 Stainless GT 2.000mm Pitch Metric Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive. Use with GT2 or GT3 type belts.

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
  • After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.
  • Use with GT2 or GT3 type belts.

Product Data

  • Number of Teeth : 90
  • Min. Usable Length (L) 200.0 mm
    (Equiv. 7.874 in.)
  • Pitch Diameter (PD) 57.30 mm
    (Equiv. 2.256 in.)
  • Outside Diameter (OD) 56.80 mm
  • Shank Diameter (D1) 19.00 mm
  • Shank Length (Sl) 19.0 mm
  • Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Gates 90-2P-PS200-SS304
  • 902PPS200SS304
