P-030G-090-150P-AL-G-079 - Datasheet
MBA
Category Information

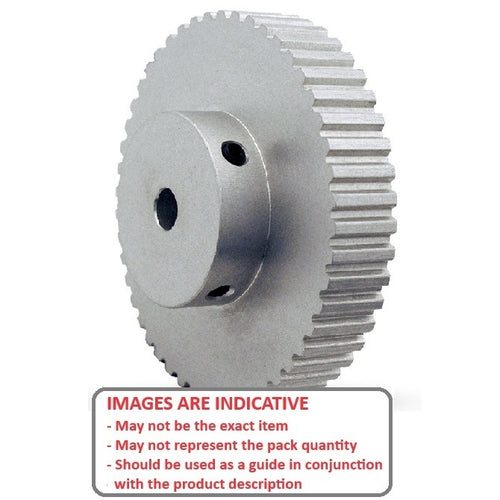

Pulleys - Metric Timing - 3.000mm Pitch - GT - 15mm Wide Aluminium15mm Wide Aluminium GT 3.000mm Pitch Metric Timing Pulleys. Timing Pulleys to suit GT 3.000mm Pitch Timing Belts 15mm Wide. Use with GT2 or GT3 type belts.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Aluminium Alloy
- Finsihed through bore
- Set screw locking
Product Data
- Number of Teeth : 90
- Max Belt Width 15.00 mm
- Bore (d) 7.938 mm
- Bore Type Finished
- Locking Type Set Screw
- Type 3
- Pitch Dia. (PD) 85.91 mm
- Overall Length 28.2 mm
- Hub Diameter (HD) 31.8
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates® 90-3P15-6A4
- 903P156A4
