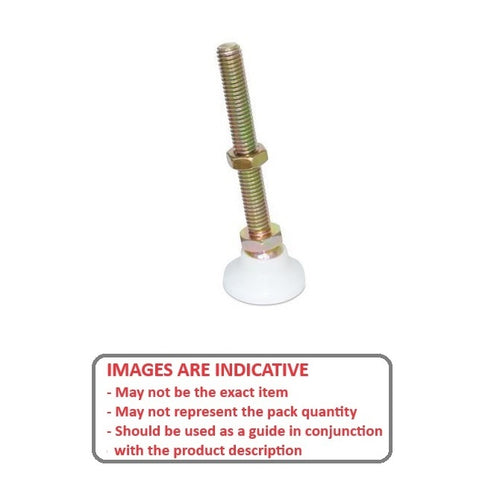

MSM-064C-064-CGCAB - Datasheet
MBA
Category Information
Mounts - Levelling Studded - Swivel - Gold Chromate - Acetal BaseAcetal Base Gold Chromate Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 1/4-20 UNC (6.35mm)
- Base Diameter (D)
25.4
mm
(Equiv. 1 in.) - Foot Height (C)
21.0
mm
(Equiv. 0.827 in.) - Thread Length (F) 63.5 mm
- Base Height (E) 7.14 mm
- Overall Height 84.5 mm
- Load Rating 90 Kg
- Finish Gold Chromate
- Pad Material Delrin
- Hex Flats (B) 12.700 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MSM0090064CLGA
- TD-15
- TD15
