MW-0907 - Datasheet

MBA

Category Information

Mounts - Wedge - Light Duty

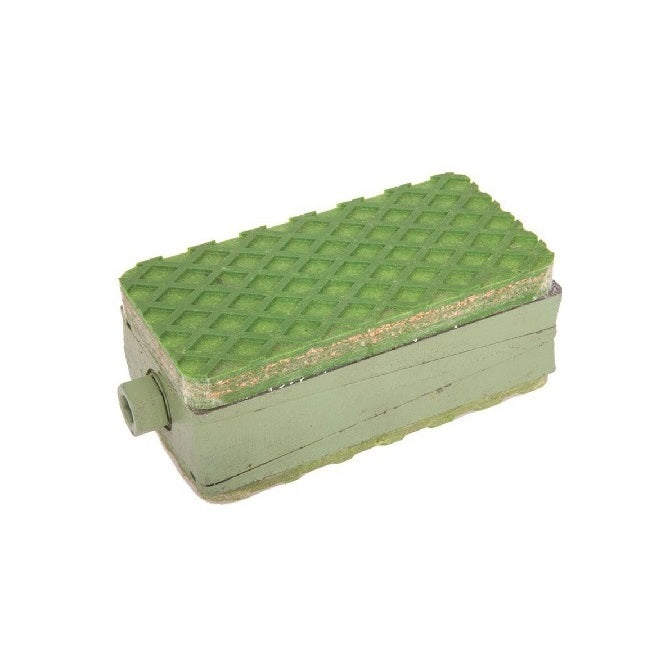

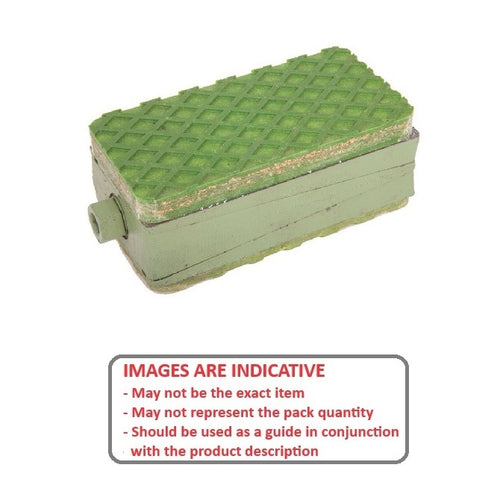

Light Duty Wedge Mounts. Used for leveling all types of production machines.

  • Cast iron with non skid pads on top and bottom.
  • Excellent isolation and dampening properties. Free standing, compact, low construction height.
  • Fine adjustments under full load.
  • Pre-tensioned wedges for transverse stability and self locking wedges for longitudinal stability.

Product Data

  • Max Load : 907.2 Kg

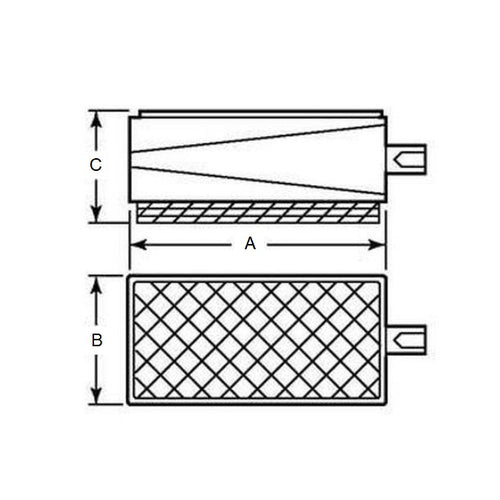

  • Length (A) 152.40 mm
    (Equiv. 6 in.)
  • Width (B) 76.20 mm
    (Equiv. 3 in.)
  • Depth (C) 60.33 mm
  • Leveling Range +/-4.75 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • AWM-2
  • AWM2
