MAV-907-05-102-Z - Datasheet
MBA
Category Information

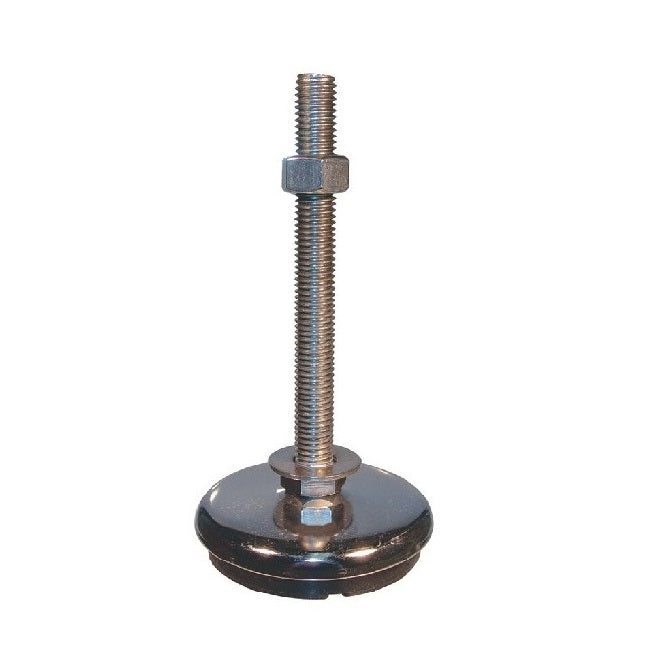

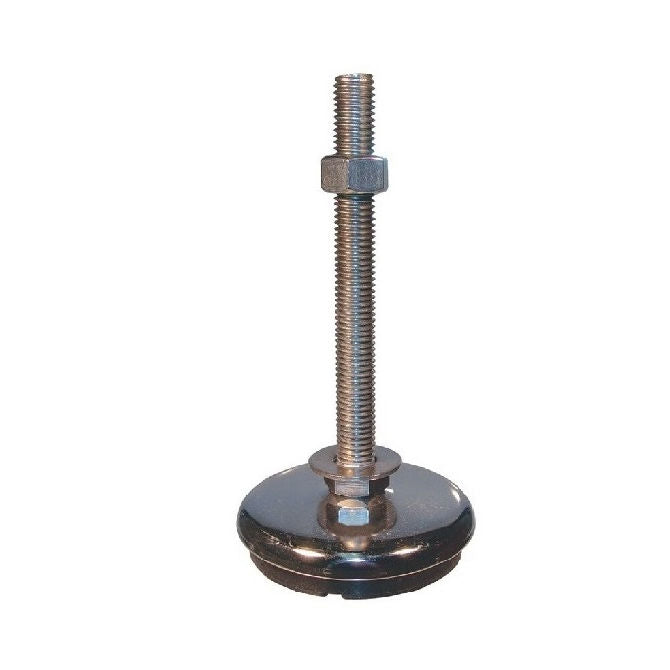

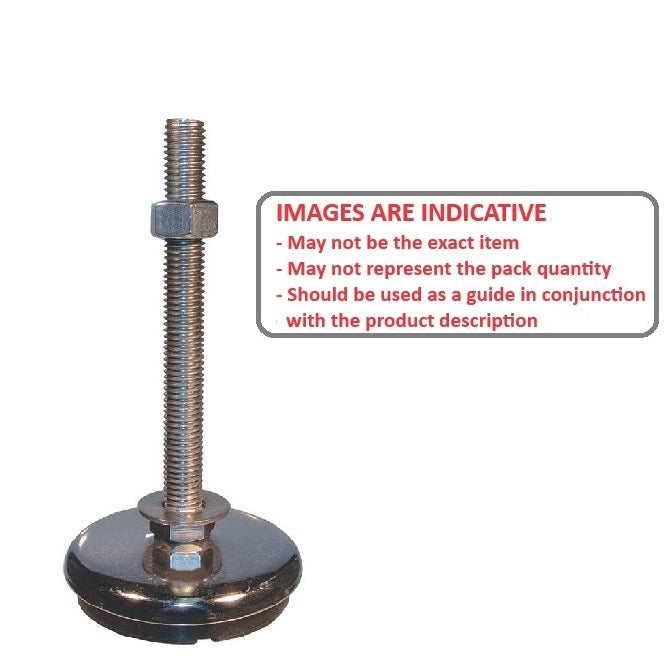

Mounts - Anti-Vibration - Zinc Plated SteelZinc Plated Steel Anti-Vibration Mounts. Designed with high grade nitrile rubber and zinc plated steel.
- Swivel movement plus or minus 7o for stable support on inclined floors.
- Nitrile rubber base helps ensure stability.
Product Data

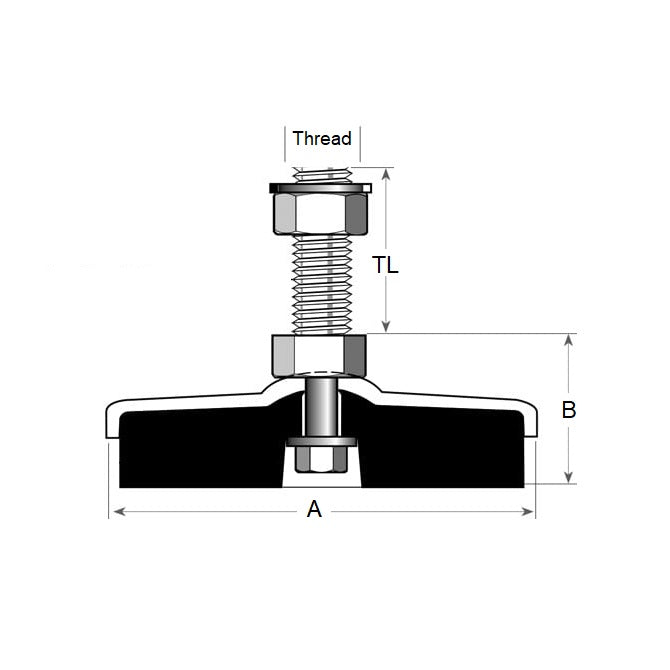

- Load Capacity : 907.2 Kg
- Thread 5/8-11 UNC (15.88mm)
- Thread Length
101.6
mm
(Equiv. 4 in.) - A Dia. 98.0 mm
- B base Ht. 23.9 mm
- Material Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- SX880
- SX-880
