Miniature Bearings Australia
MAV-907-03-102-Z - Datasheet
MBA
Category Information

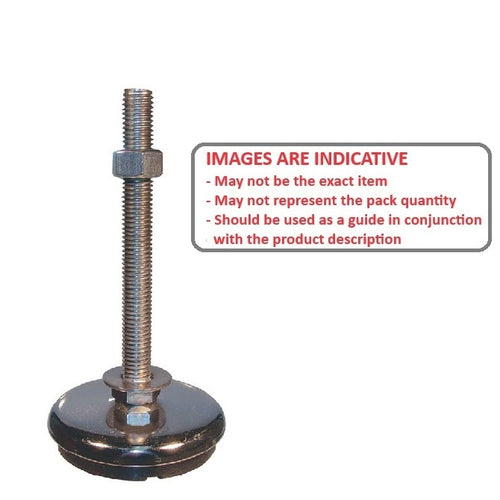

Mounts - Anti-Vibration - Zinc Plated SteelZinc Plated Steel Anti-Vibration Mounts. Designed with high grade nitrile rubber and zinc plated steel.
- Swivel movement plus or minus 7o for stable support on inclined floors.
- Nitrile rubber base helps ensure stability.
Product Data
- Load Capacity : 907.2 Kg
- Thread 3/4-10 UNC (19.05mm)
- Thread Length
101.6
mm

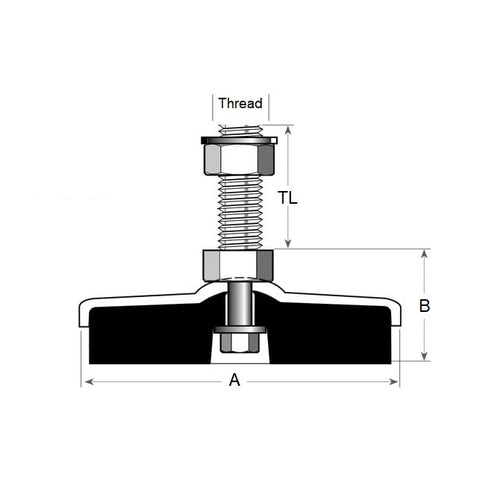

(Equiv. 4 in.) - A Dia. 98.0 mm
- B base Ht. 23.9 mm
- Material Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- SX-890
- SX890
