MLF-191C-S3NY-0LH-114 - Datasheet
MBA
Category Information

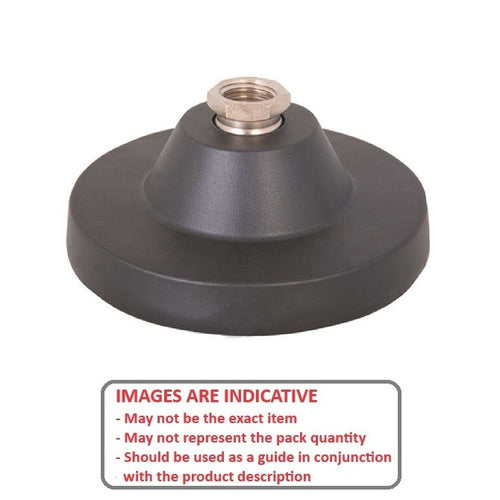

Mounts - Levelling Socket - Standard - Nylon - No Lag HolesNo Lag Holes Nylon Standard Levelling Socket Mounts. Levelling adjusters. Steel and stainless steel socket internal threads. Use your own custom thread length.
- An expanded range may be available on special order. Please enquire.
Product Data

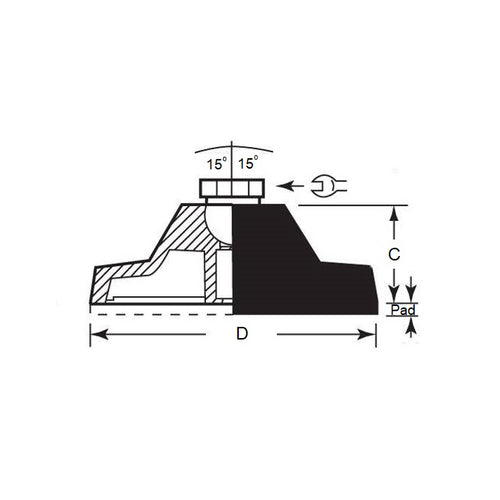

- Thread Size (A) : 3/4-10 UNC (19.05mm)
- Base Diameter (D)
113.8
mm
(Equiv. 4.48 in.) - Foot Height (C)
45.0
mm
(Equiv. 1.772 in.) - Overall Height 57.40 mm
- Load Rating 900 Kg
- Gold Chromate
- Pad Thickness 9.65 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MLF0900191CNS3
- MLF0057191CNS3
- RL3305S
- RL-3305-S
