MSF-240M-CNP - Datasheet
MBA
Category Information

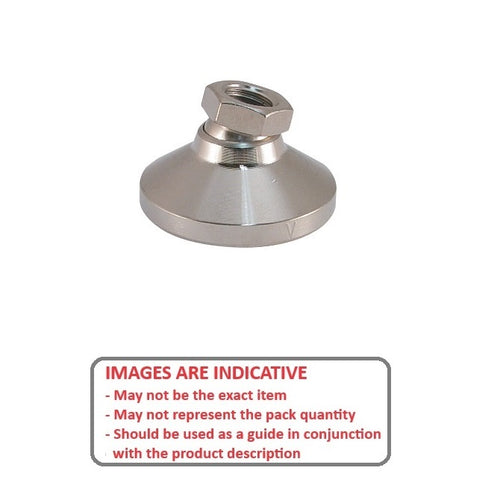

Mounts - Levelling Socket - Swivel - Nickel Standard - PlatedPlated Nickel Standard Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M24 (24x3mm)
- Base Diameter (D)
102.0
mm
(Equiv. 4.016 in.) - Foot Height (C)
48.0
mm
(Equiv. 1.89 in.) - Min. Thread Depth 20.0 mm
- Base Height (E) 10.00 mm
- Load Rating 9000 Kg
- Finish Nickel Plated
- Hex Flats (B) 35.00 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MSF9000M24NP
- MLP385
- MLP-385
