MLM-159C-125-S3NY-2LH - Datasheet
MBA
Category Information

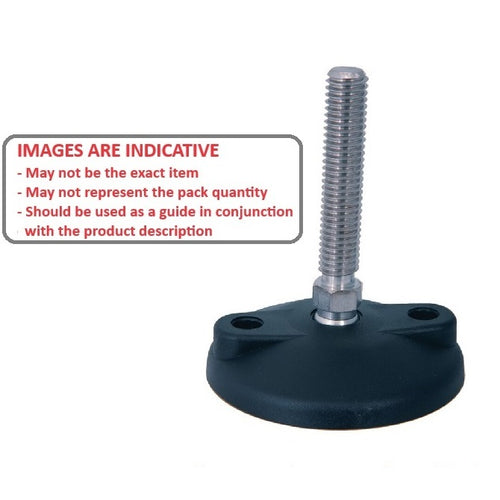

Mounts - Levelling Studded - Light Duty - Nylon - With Lag HolesWith Lag Holes Nylon Light Duty Levelling Studded Mounts. Levelling adjusters. Steel and stainless steel threads.
- An expanded range may be available on special order. Please enquire.

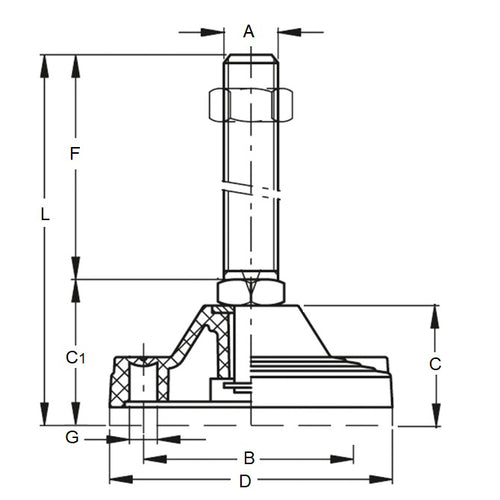

Product Data
- Thread Size (A) : 5/8-11 UNC (15.88mm)
- Base Diameter (D)
78.7
mm
(Equiv. 3.098 in.) - Foot Height (C)
18.3
mm
(Equiv. 0.72 in.) - Thread Length (F) 124.9 mm
- Base Height (C) 29.97 mm
- Overall Height (L) 143.2 mm
- Load Rating 900 Kg
- Swivel Angle 20 °
- Lag Hole Diameter 9.144 mm
- Distance Between Lags 54.61 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- MLM0155159CNS32
- MLM0900159CNS32
- RL1312S
- RL-1312-S
