MLM-127C-051-C-AVMD - Datasheet
MBA
Category Information

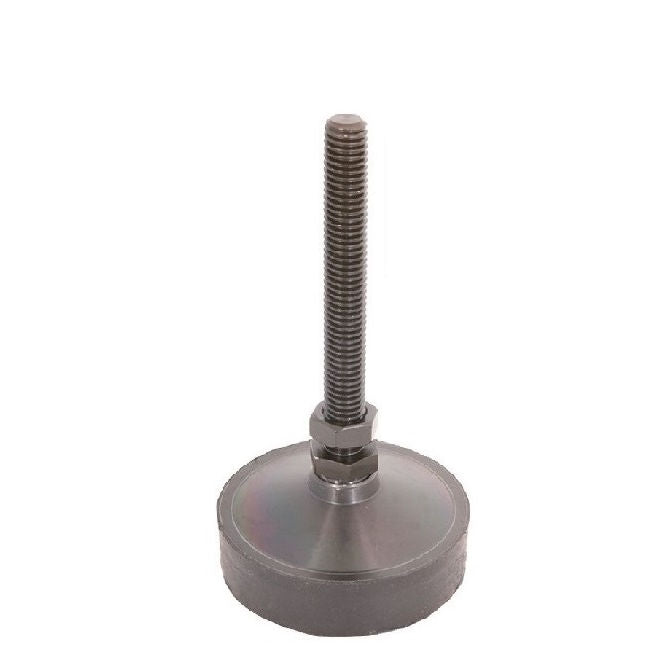

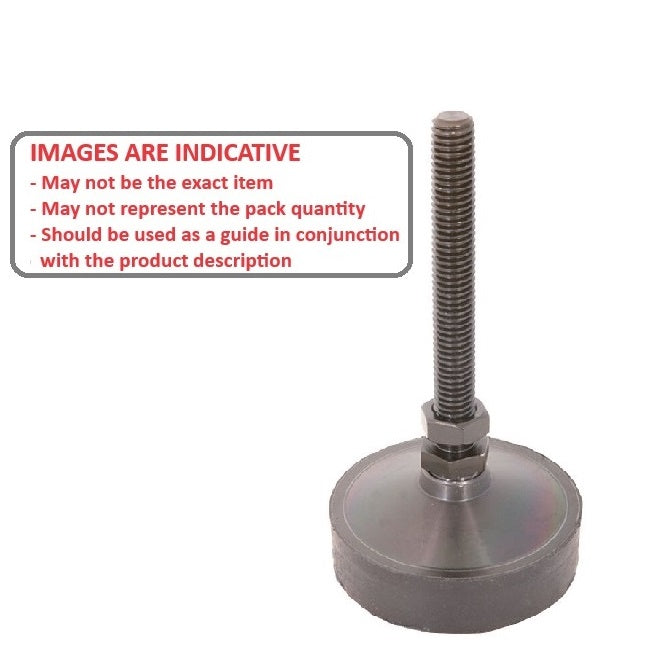

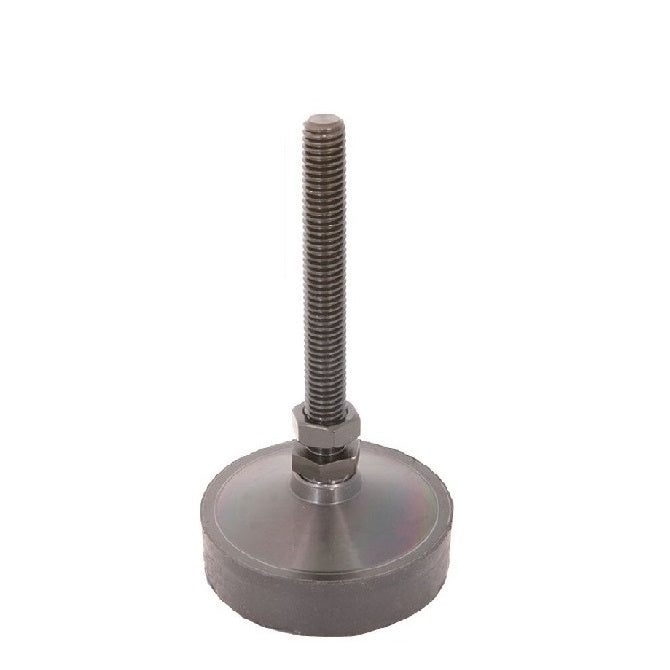

Mounts - Levelling Studded - Anti-VibrationAnti-Vibration Levelling Studded Mounts. Levelling adjusters. Specifically designed to provide low frequency vibration isolation, leveling and shock attenuation for electronics and machinery.
- An expanded range may be available on special order. Please enquire.
- 15o swivel off centre to adjust to uneven surfaces.
- over 12mm of black neoprene permanently bonded to the base. Neoprene operating temperature -20 to 80 oC.
- Steel parts are zinc plated with black chromate finish.

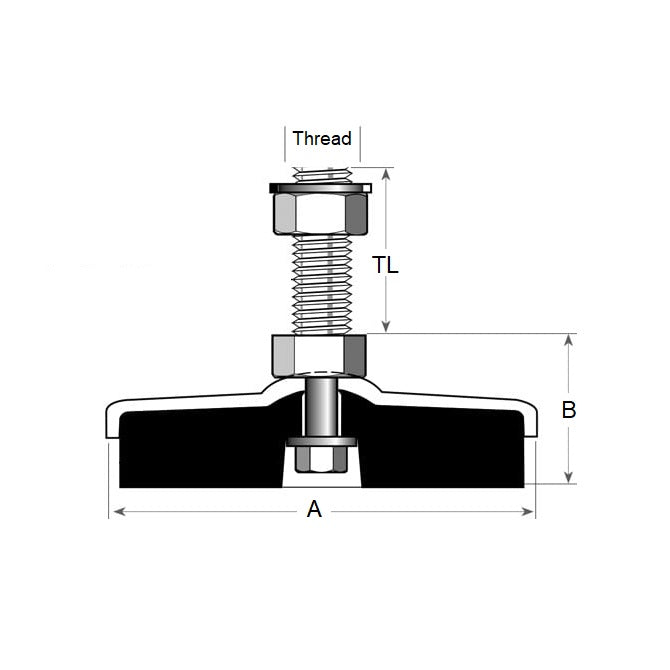

Product Data
- Thread Size (A) : 1/2-13 UNC (12.7mm)
- Base Diameter (D)
76.2
mm
(Equiv. 3 in.) - Foot Height (C)
41.3
mm
(Equiv. 1.626 in.) - Thread Length (F) 50.8 mm
- Base Height (E) 41.3 mm
- Overall Height 92.1 mm
- Load Rating 90 Kg
- Finish Black Chromate
- Neoprene
- Hex Flats (B) 19.05 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MLM0090051127CAV
- MLM0090127C051AV
- MLM0094127C051AV
- AX15
- AX-15
