SP1-064-028B-009-064F-C - Datasheet
MBA
Category Information

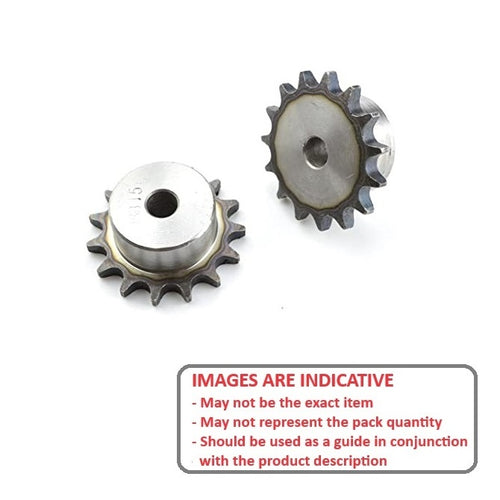

Sprockets - Roller Chain - Simplex - 25-1A - With Boss - Finished BoreFinished Bore With Boss 25-1A Simplex Roller Chain Sprockets. 25-1 ASA 1/4 Inch. With finished bore.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
- Match with 6.35mm simplex chain
- American Standard 25-1 - 1/4 inch
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 9
- PCD
18.18
mm
(Equiv. 0.716 in.) - Hub Diameter (D1)
11.13
mm
(Equiv. 0.438 in.) - Overall Width (E) 12.70 mm
- Standard Number 25-1A
- Type / Rows Type 3s
- Finished Bore (d) 6.350 mm
- Locking Method 2 Set Screws 8-32 at 90 Deg
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Gates 25BF9X1-4
- Gates 25BS9X1-4
- 2737T1
- 25BF9X14
- 25BS9X14
