PLIT-100-191F-20-G-C-N - Datasheet

MBA

Category Information

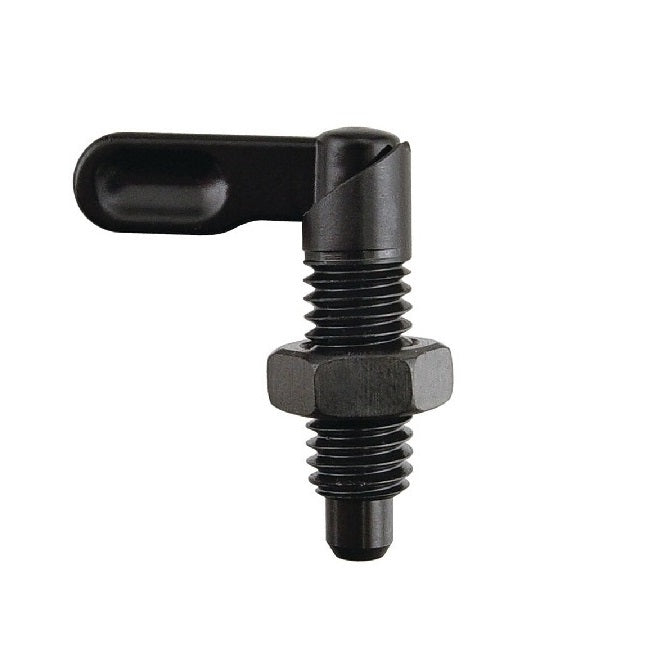

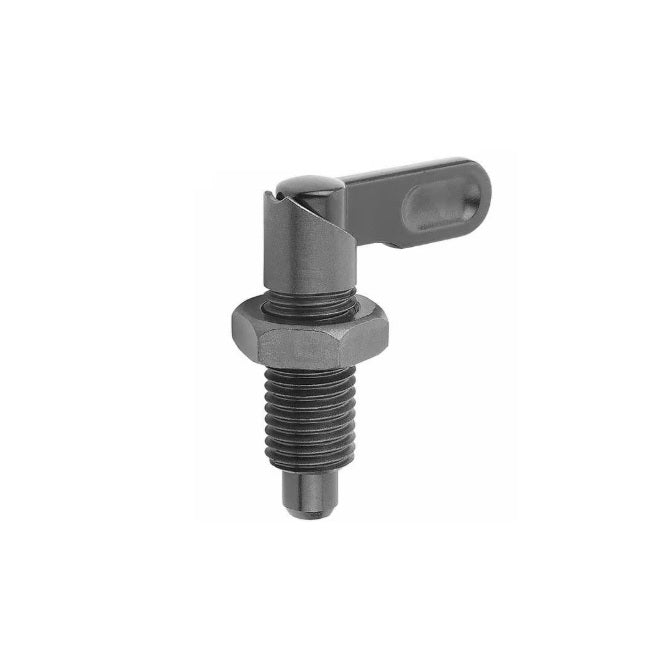

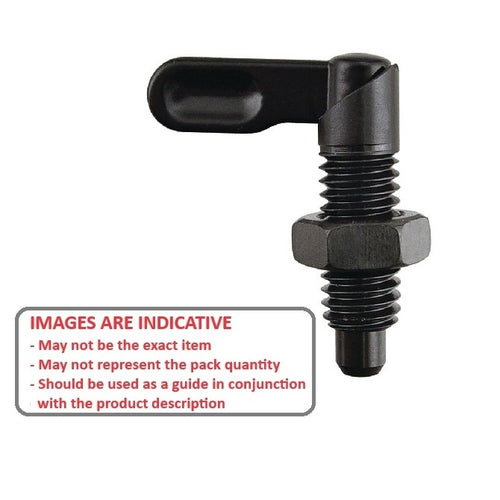

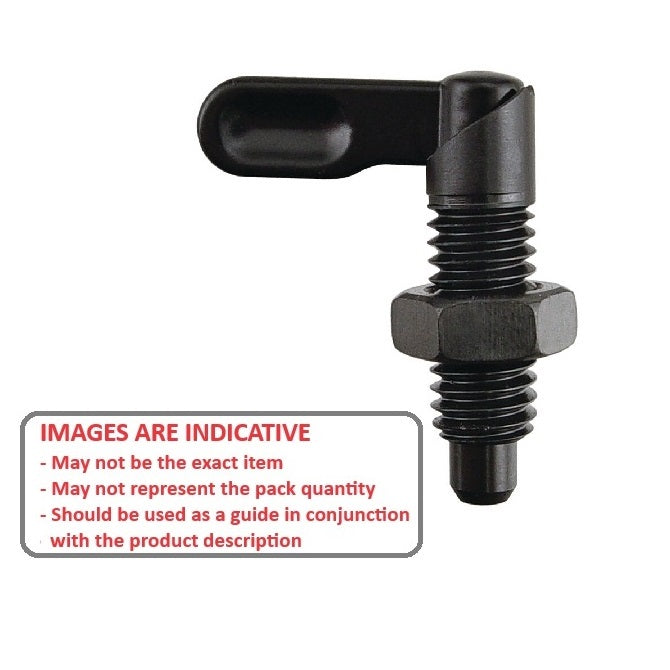

Plungers - Indexing - Grip - Steel - With Nut

With Nut Steel Grip Indexing Plungers. Grip is held in a notch in the fully retracted position. In this position the locking pin does not project from the body at all.

    Product Data

    • Thread (B) : 3/4-16 UNF (19.05mm)
    • Thread Length (F) 35.0 mm
      (Equiv. 1.378 in.)
    • Initial End Force 1.0 N
    • Final End Force 2.0 N
    • Tip Diameter (A) 10.0 mm
    • Tip Length (E) 12.0 mm
    • H 28.6
    • Handle Length (G) 50.0 mm
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP716
      • KBP-716
      View full details

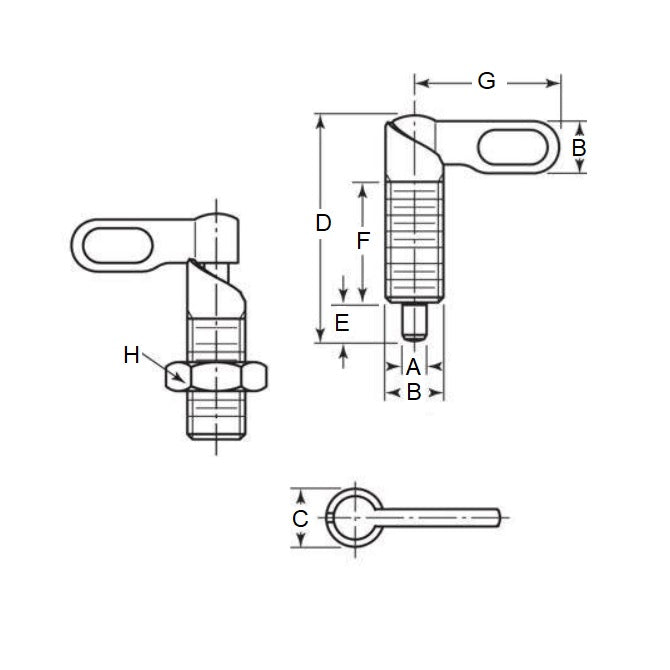

      PLIT-100-191F-20-G-C-NDiagramPLIT-100-191F-20-G-C-NImage
