CS-0991-0381-11-S2G - Datasheet
MBA
Category Information

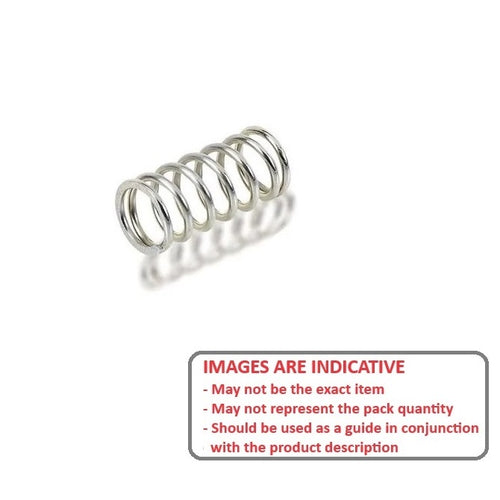

Springs - Compression - Stainless SteelStainless Steel Compression Springs. 300 gradd stainless steel selection, including 303, 304 and 316. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data
- Spring OD (D0)
:
9.91
mm
+/- 0.303
(Equiv. 0.39 in.) - Free Length (L0)
38.1
mm
+/- 1.27
(Equiv. 1.5 in.) - Wire Diameter (d)
1.12
mm
+/- 0.018
(Equiv. 0.044 in.) - Loaded Height (L1) 23.85 mm
- Load at L1 27.61 N
- Rate (P/f) 1.9 N/mm
- Solid Height (Sh) 13.15 mm
- Approx. ID 7.7 mm
- End Type Ground Flush
- Max Rod Dia. (A) 7.60 mm
- Material Stainless Steel 302/304 (Similar to A2, 18-8)
