WST-10RS - Datasheet
MBA
Category Information

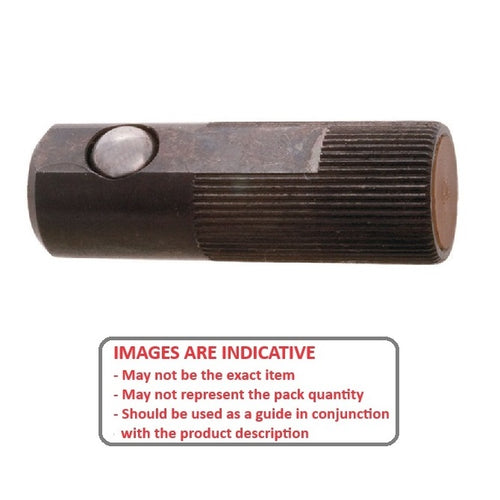

Pins - Side Thrust - Single Sided - Stainless BallStainless Ball Single Sided Side Thrust Pins. For holding, clamping and positioning work pieces. Body is black oxide steel.
- Stainless ball and stainless spring with black oxide coated steel body
Product Data

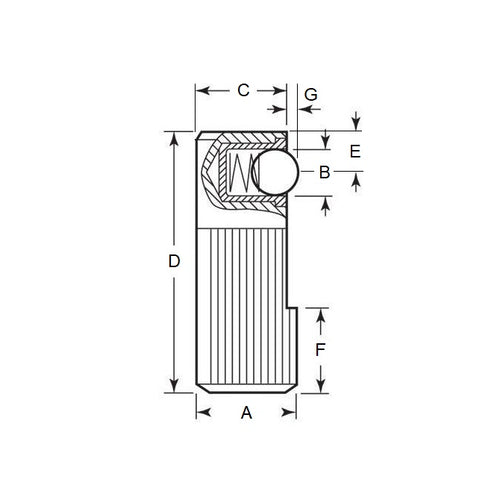

- Knurled Diameter (A)
:
9.906
mm
(Equiv. 0.39 in.) - Ball Diameter (B)
4.064
mm
(Equiv. 0.16 in.) - End Diameter (C)
8.128
mm
(Equiv. 0.32 in.) - D 29.972 mm
- E 4.318 mm
- F 7.112 mm
- G 1.016 mm
- Initial Load Rating 0.46 Kg
- Final Load Rating 0.92 Kg
- Material Stainless Steel Ball
