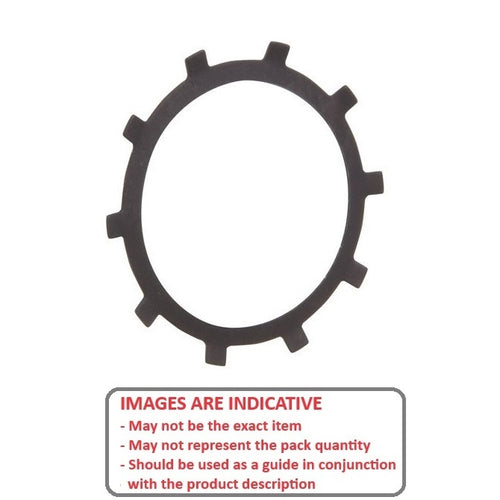

RPI-095-096-C - Datasheet

MBA

Product Data

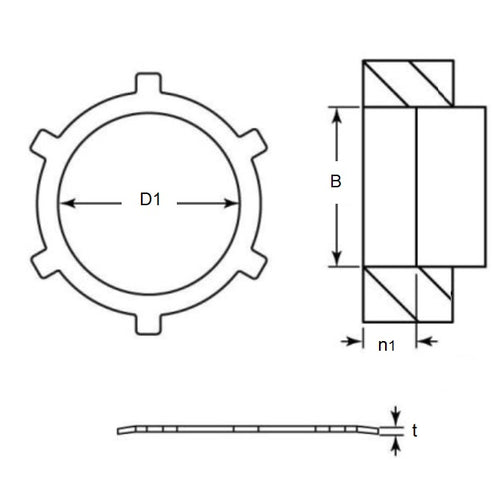

• Housing Bore (B) Min : 9.50 mm
  (Equiv. 0.374 in.)
• Housing Bore (B) Max 9.56 mm
  (Equiv. 0.376 in.)
• Inside Clearance (D1) 4.45 mm _{+ / - 0.13}
  (Equiv. 0.175 in.)
• Thickness (t) 0.25 mm +/- 0.03
• Recommended Depth (n1) 1.02 mm
• Thrust Load 1037 kg.cm
• Material Carbon Spring Steel Self Finish

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

• Circlips & E-Clips Catalogue
• Snap Rings Catalogue
• Stainless Steel Retaining Ring Material

Cross References

• 98435A134
• Small Parts RSI-6
• NoCor TI-037
• N1305-0037-APP
• N13050037APP
• N1305-0037APP
• TI037
• RSI6
