RPO-095-096-SP15 - Datasheet
MBA
Category Information

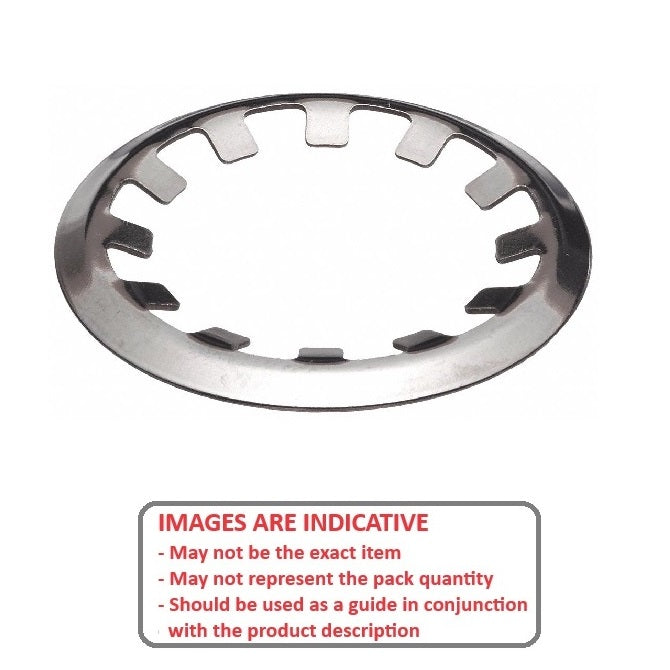

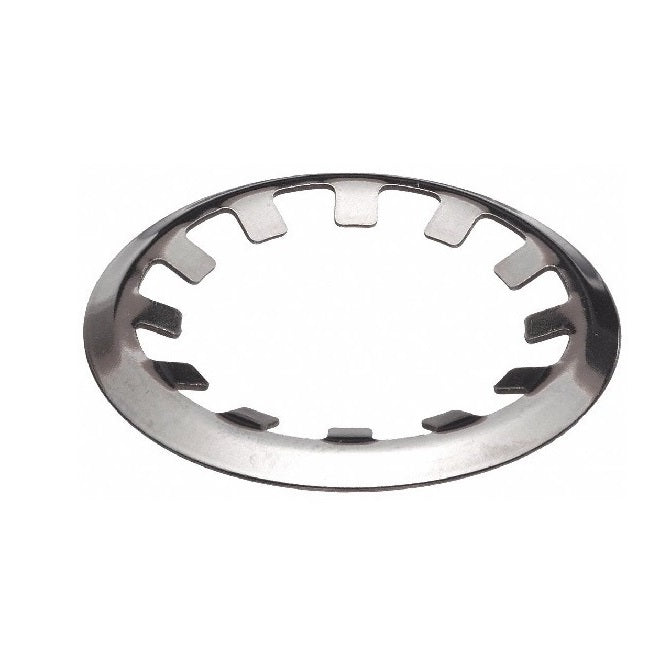

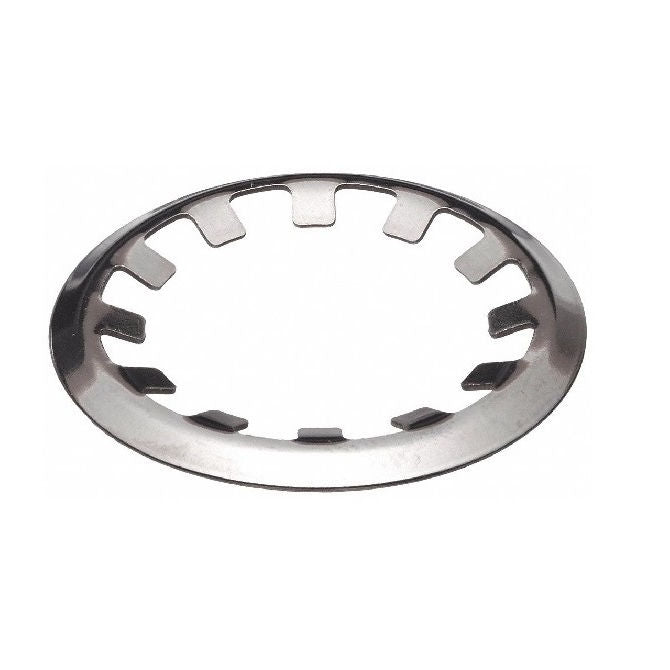

Retaining Rings - Push On - Stainless SteelStainless Steel Push On Retaining Rings. Rotor Clip TY. Stainless Steel hardness HR15N 82.5-86
- An expanded range may be available on special order. Please enquire.
- PH 15-7/17-7 Stainless Steel and 1.4310 Stainless Steel
Product Data
- Min shaft size (s1)
:
9.50
mm
(Equiv. 0.374 in.) - Max Shaft Size (s2)
9.55
mm
(Equiv. 0.376 in.) - Outside diameter (D1)
14.61
mm
(Equiv. 0.575 in.) - Min shaft extension (n1) 1.02 mm
- Material Thickness (t) 0.38 mm
- Material Stainless Steel Grade PH15-7-17
Product Compliance and Data
Additional Resources
Cross References
- Waldes 5105-037-SS
- IRR 6100-037-SS
- NoCor TY-037-SS
- Rotor Clip TY-037-SS
- 6100037SS
- 5105037SS
- TY037SS
