CCE-00953-B - Datasheet
MBA
Category Information

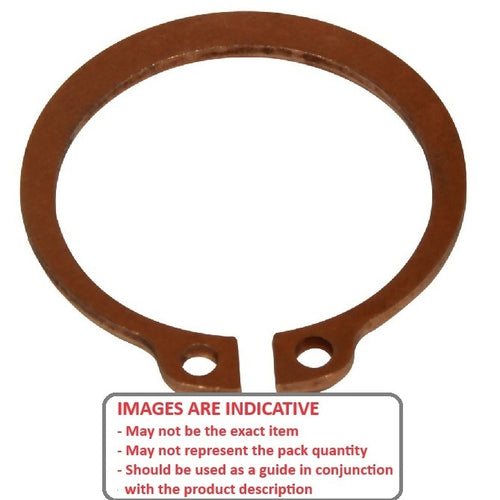

Retaining Rings - External - Circlips - Standard - Beryllium CopperBeryllium Copper Standard Circlips External Retaining Rings. Imperial and metric DIN471 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
Product Data
- Shaft Diameter (Ds)
:
9.53
mm
(Equiv. 0.375 in.) - Clip Thickness (T)
0.64
mm
+/- 0.051
(Equiv. 0.025 in.) - Groove Dia. (Dg)
8.90
mm
+/- 0.051
(Equiv. 0.35 in.) - Approx. Loose Circlip ID (A) 8.59 mm
- Groove Width (W) 0.74 mm
- Clearance on Shaft (C1) 15.49 mm
- Clearance in Groove (C1) 14.99 mm
- Min. Lug Diameter (h) 0.99 mm
- Min. Extension (n) 0.97
- Standard MIL-16624
- Material Beryllium Copper
Product Compliance and Data
Additional Resources
Cross References
- NoCor SH-037-BC
- SH037BC
- N14000037BC
- N1400-0037BC
