ECL-0084-0095-CZ-KR - Datasheet
MBA
Category Information

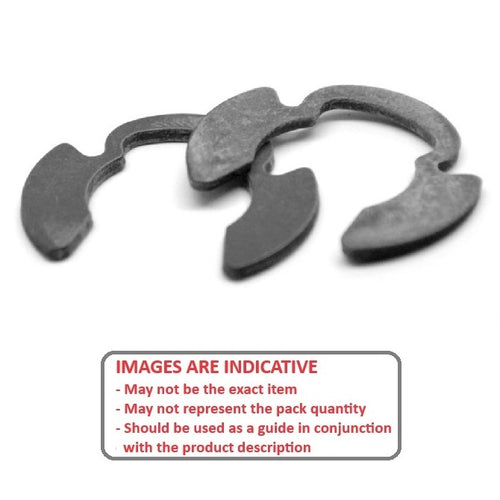

Retaining Rings - E-Clips - KlipringKlipring E-Clips Retaining Rings. Also known as Poodle Rings - Imperial - N1504 / NKP
- An expanded range may be available on special order. Please enquire.

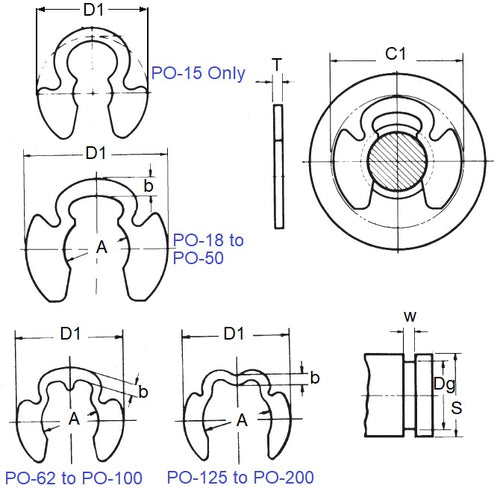

Product Data
- Minimum Rec. Shaft Dia (S)
:
9.53
mm
+ 2.54 / - 0.00
(Equiv. 0.375 in.) - Groove Dia. (Dg)
8.41
mm
+/- 0.152
(Equiv. 0.331 in.) - Clip Thickness (T)
1.07
mm
+/ - 0.052
(Equiv. 0.042 in.) - Clip OD Loose (D1) 17.27 mm
- Groove Width (W) 1.17 mm
- Maximum Rec. Shaft Dia (S) 12.07
- Clip OD in groove (C1) 18.29 mm
- Loose Clip ID (A) 7.92 mm
- Min. Extension (n) 1.12
- Material Zinc Plated Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Waldes 5304-037-ZD
- NoCor PO-037-ZD
- Rotor Clip PO-037-ZD
- PO037ZD
- 5304037ZD
