CLP-095-0703-S4 - Datasheet
MBA
Category Information

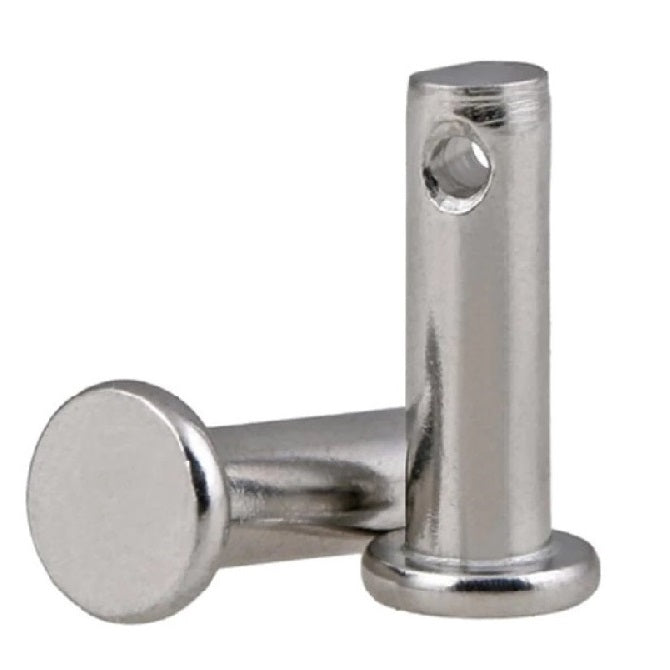

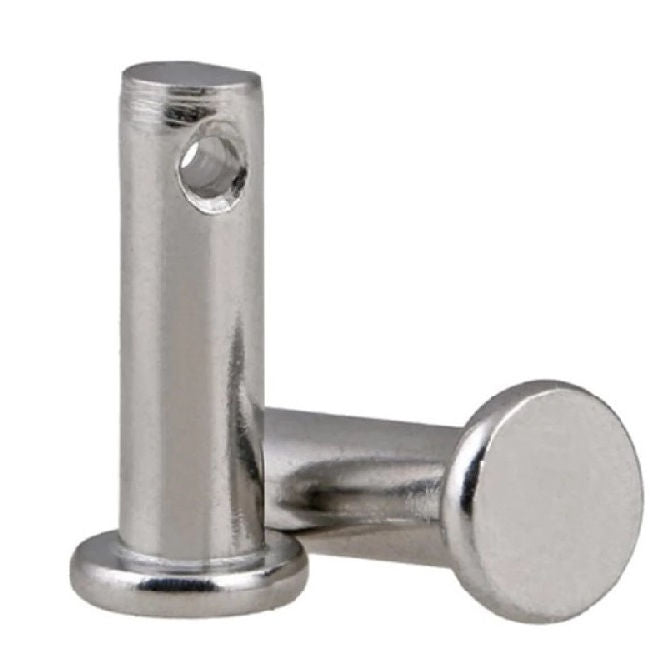

Pins - Clevis - Pin Locking - Stainless Steel 300 GradeStainless Steel 300 Grade Pin Locking Clevis Pins. Match with a suitable R-Clip or Spilt Pin - pin size shown in listings
- In addition to retaining parts on a shaft or axle, clevis pins can also be used as light duty axles, spring holders or even fishing line weights.
Product Data

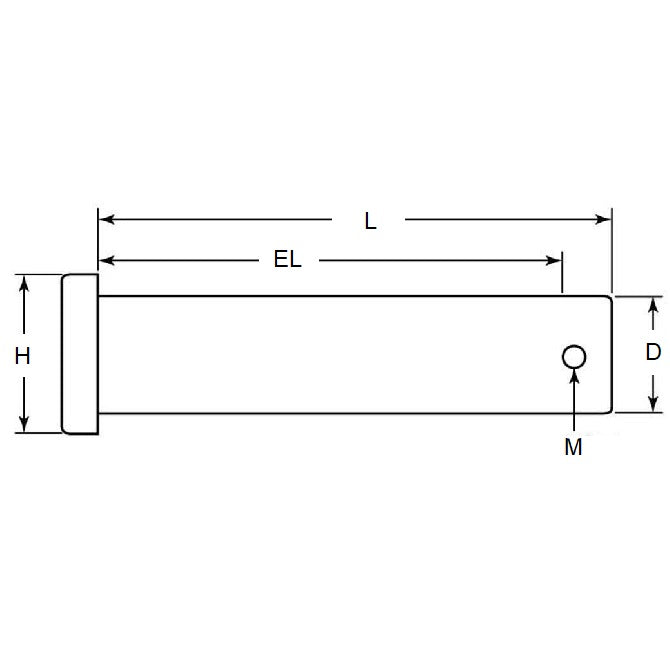

- Nominal Pin Diameter (D)
:
9.53
mm
- 0.05 / - 0.18
(Equiv. 0.375 in.) - Grip Length (EL)
70.25
mm
+ 0.51 / - 0.00
(Equiv. 2.766 in.) - Nom. Length (L)
76.20
mm
+ 0.51 / - 0.00
(Equiv. 3 in.) - Ret. Pin Dia. (M) 2.4 mm
- Suitable R-Clip RCL-024-059-S4
- Material Stainless Steel 300 Series
Product Compliance and Data
Additional Resources
Cross References
- CLP-140S
- CLP140S
