ECB-0077-0095-S15 - Datasheet
MBA
Category Information

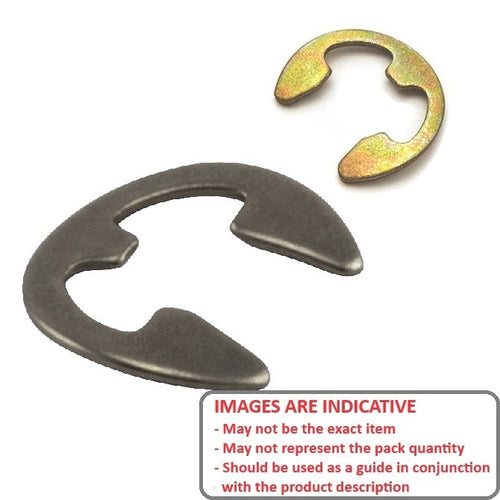

Retaining Rings - E-Clips - BowedBowed E-Clips Retaining Rings. For end play take up.
- An expanded range may be available on special order. Please enquire.
- Thickness tolerance +/- 0.025.

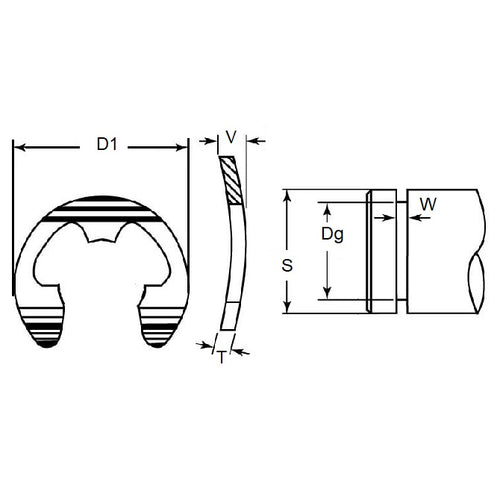

Product Data
- Minimum Rec. Shaft Dia (S)
:
9.53
mm
(Equiv. 0.375 in.) - Groove Dia. (Dg)
7.70
mm
+ 0.076 / - 0.000
(Equiv. 0.303 in.) - Clip Thickness (T)
0.89
mm
+/ - 0.051
(Equiv. 0.035 in.) - Clip OD Loose (D1) 16.76 mm
- Groove Width (W) 1.52 mm
- Ring Width (X) 1.52 mm
- Force Required to Flatten 24.6 kg
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- NoCor BE-037-SS
- BE037SS
- N15010037KSF
- N1501-0037KSF
- S73KW2-131-37
- S73KW213137
