ECL-0077-0095-S15 - Datasheet
MBA
Category Information

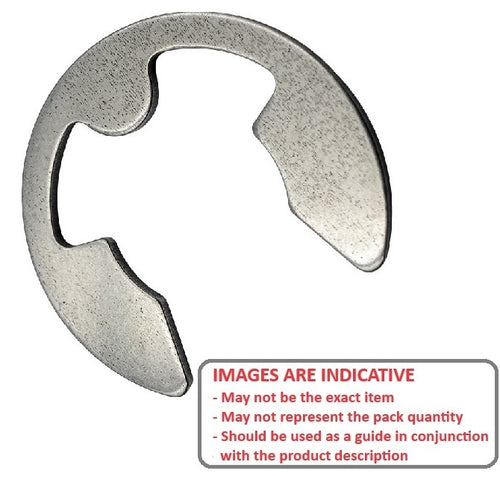

Retaining Rings - E-Clips - Basic - Stainless SteelStainless Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Stainless Steel PH15-7 Mo.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
Product Data
- Minimum Rec. Shaft Dia (S)
:
9.53
mm
+ 2.54 / - 0.00
(Equiv. 0.375 in.) - Groove Dia. (Dg)
7.70
mm
+ 0.076 / - 0.000
(Equiv. 0.303 in.) - Clip Thickness (T)
0.89
mm
+/ - 0.050
(Equiv. 0.035 in.) - Clip OD Loose (D1) 16.76 mm
- Groove Width (W) 0.99 mm
- Maximum Rec. Shaft Dia (S) 12.07
- Clip OD in groove (C1) 17.27 mm
- Standard MIL-16633
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Waldes 5133-037-SS
- 98408A134
- Ellison E-037-SS
- NoCor E-037-SS
- Rotorclip E-037-SS
- E037SS
- 5133037SS
- N1500-037-SS
- N1500037SS
- N1500-0037KSF
- N15000037KSF
- S73LW2-ER133-37
- S73LW2ER13337
