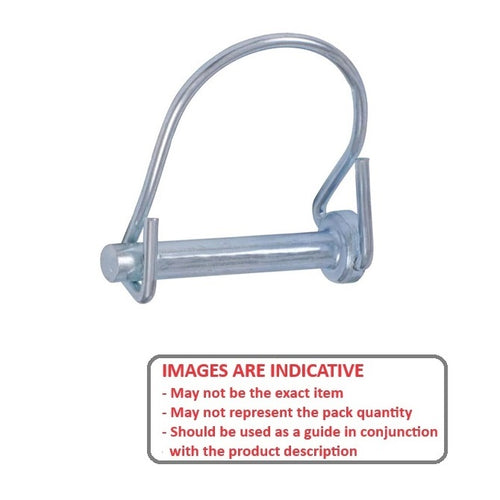

LYP-R1-095-044-CZ - Datasheet

MBA

Product Data

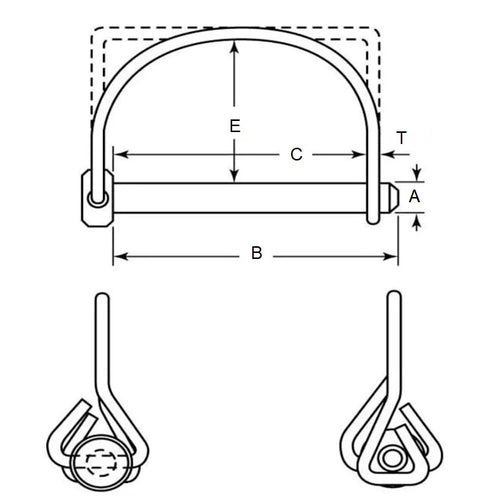

• Pin Diameter (A) : 9.53 mm _{- 0.051 / - 0.178}
  (Equiv. 0.375 in.)
• Grip Length (C) 44.45 mm _{+ 0.00 / - 6.35}
  (Equiv. 1.75 in.)
• Wire Thickness (T) 3.0 mm
  (Equiv. 0.118 in.)
• Clearance To Wire (E) 38.1 mm
• Pin Length (B) 50.8 mm
• Weight Per Piece 51 g
• Finish Zinc Plated
• Material Carbon Steel Spring Wire Zinc Plated

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Master Pins Catalogue PDF


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• NoCor SNIP-375-1750R
• CLP-574
• CLP574
• SNIP3751750R
