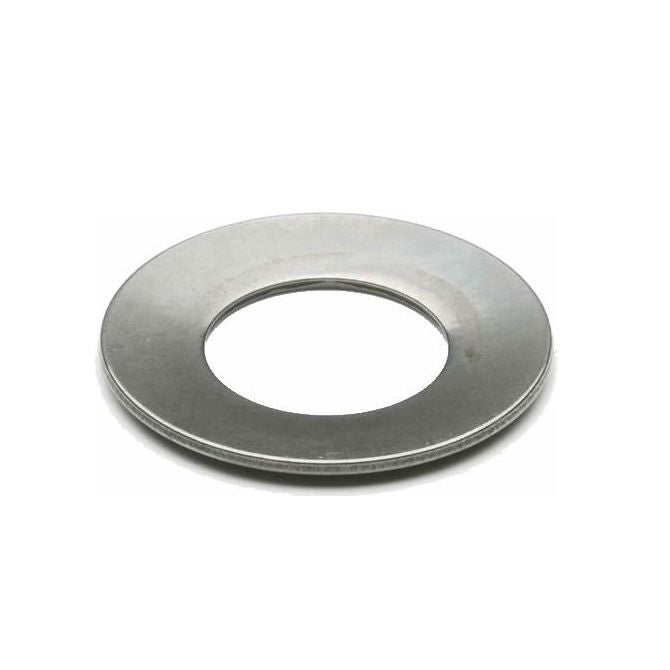

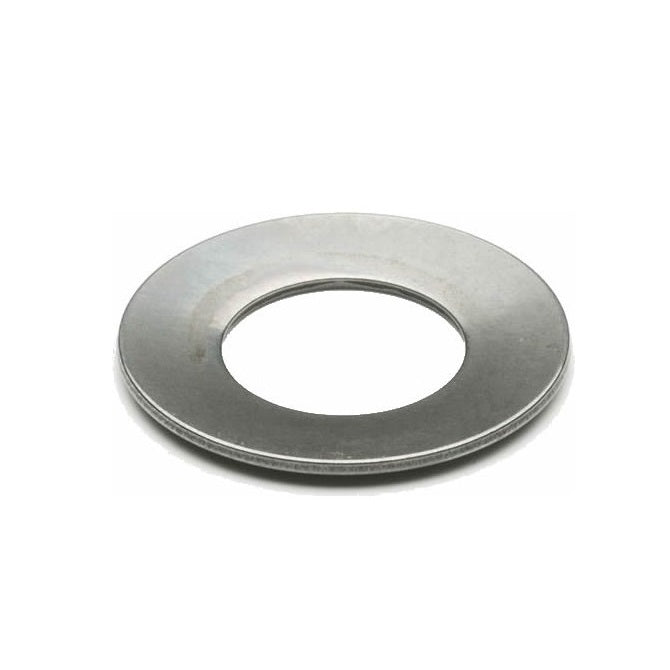

Washers - Disc Spring - Standard - Stainless SteelStainless Steel Standard Disc Spring Washers. Includes disc springs to DIN 2093 and belleville washers to DIN 6796.
- Disc spring washer, also known as a Belleville washer, is a conical-shaped washer designed to act as a spring.
- Provides a high spring force within a small space and can be stacked in various configurations to adjust load and deflection characteristics.
- Washers are used to add vibration resistance, preload to bolted assemblies, and to compensate for material expansion or contraction.
- Manufactured under strict quality control to conform to DIN 2093.
Product Data

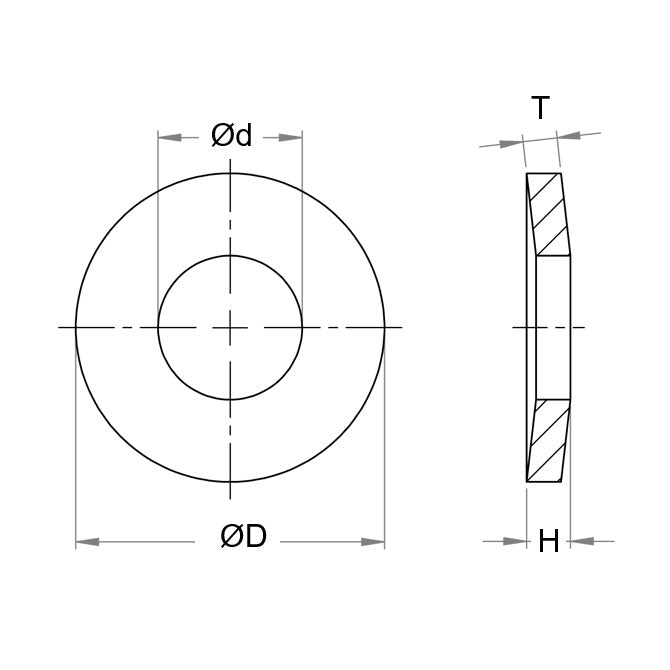

- Nominal Outside Diameter (A)
:
9.53
mm
+ 0.01 / + 0.07
(Equiv. 0.375 in.) - Nominal Inside Diameter (B)
4.76
mm
+ 0.20 / - 0.00
(Equiv. 0.187 in.) - Stock Thickness (C)
0.51
mm
- 0.00 / - 0.08
(Equiv. 0.02 in.) - Load to flatten 49.11 kg
- Loaded Height (L1) 0.64 mm
- Load at L1 26.8 kg
- Free Height (E) 0.76 mm
- Inside Height (D) 0.25 mm
- Material Stainless Steel 302/304 (Similar to A2, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 9713K59
- ExaktKey B0375-020-S
- NoCor B0375-020-S
- Raymond B0375-020-S
- Springmaster B0375-020-S
- XOSpring B0375-020-S
- B0375020S
- A7X9-12020
- A7X912020
