CLP-095-0238-P - Datasheet
MBA
Category Information

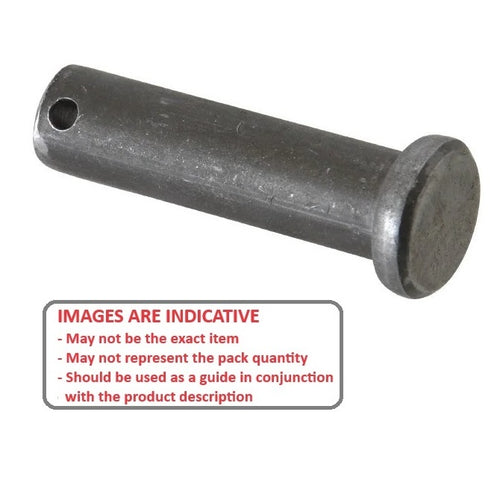

Pins - Clevis - Pin Locking - Low Carbon SteelLow Carbon Steel Pin Locking Clevis Pins. Match with a suitable R-Clip or Spilt Pin - pin size shown in listings
- In addition to retaining parts on a shaft or axle, clevis pins can also be used as light duty axles, spring holders or even fishing line weights.
- Made from low carbon steel
Product Data
- Nominal Pin Diameter (D)
:
9.53
mm
- 0.05 / - 0.18
(Equiv. 0.375 in.) - Grip Length (EL)
23.83
mm
+ 0.51 / - 0.00
(Equiv. 0.938 in.) - Nom. Length (L)
26.97
mm
+ 0.51 / - 0.00
(Equiv. 1.062 in.) - Ret. Pin Dia. (M) 2.4 mm
- Material Carbon Steel - Low Carbon 1010 or 1018 Steel
Product Compliance and Data
Additional Resources
Cross References
- 98306A270
- YP-34
- YP34
