SBTN-0953-DE - Datasheet
MBA
Category Information

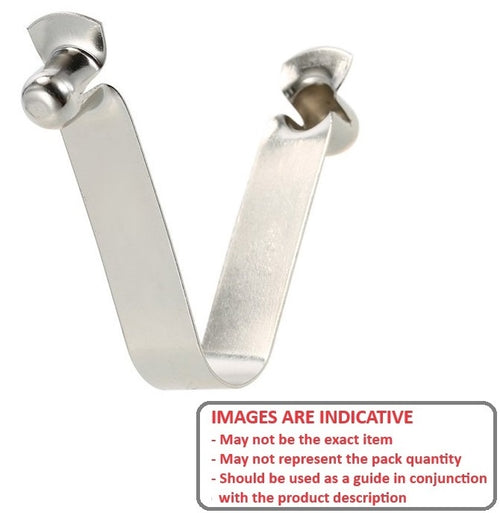

Snap Buttons - Double EndDouble End Snap Buttons. Fasteners for telescoping tubing help reduce assembly time whilst improving your product functionality. Also called button clips or spring buttons.
- Eliminates the need for rivets and screws.
- Simply snap into place in square or round tubing.
- Made from 1050 heat treated spring steel with minimum 0.005mm (0.0002 inch) zinc plating
Product Data

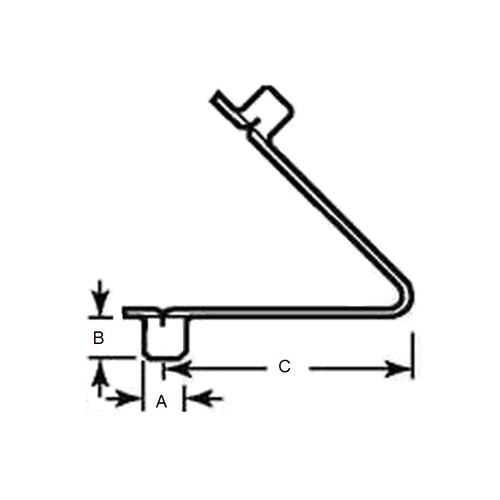

- Button Diameter (A)
:
9.53
mm
(Equiv. 0.375 in.) - Button Height (B)
11.18
mm
(Equiv. 0.44 in.) - Material Thickness
0.635
mm
(Equiv. 0.025 in.) - Clip Width 13.46 mm
- Centre to Middle of End (C) 71.63 mm
- Use with Round Tubing 25.4 to 47.5
- Use with Square Tubing 25.4 to 47.5
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- VA-4182
- VA4182
