LYP-T1-095-102-CZ - Datasheet
MBA
Category Information
Pins - Wire Lock Lynch - Single Wire - Trapezoid Carbon SteelTrapezoid Carbon Steel Single Wire Wire Lock Lynch Pins. Also known as snapper pins
Product Data

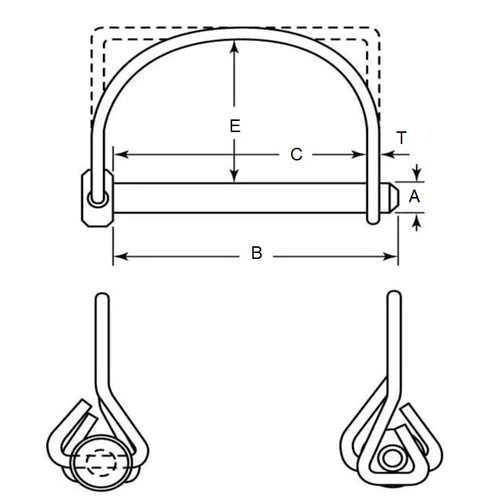

- Pin Diameter (A)
:
9.53
mm
- 0.051 / - 0.178
(Equiv. 0.375 in.) - Grip Length (C)
101.6
mm
+ 0.00 / - 6.35
(Equiv. 4 in.) - Wire Thickness (T)
2.3
mm
(Equiv. 0.091 in.) - Finish Zinc Plated
- Material Carbon Steel Spring Wire Zinc Plated
