WRE-0095-RD-HO - Datasheet
MBA
Category Information

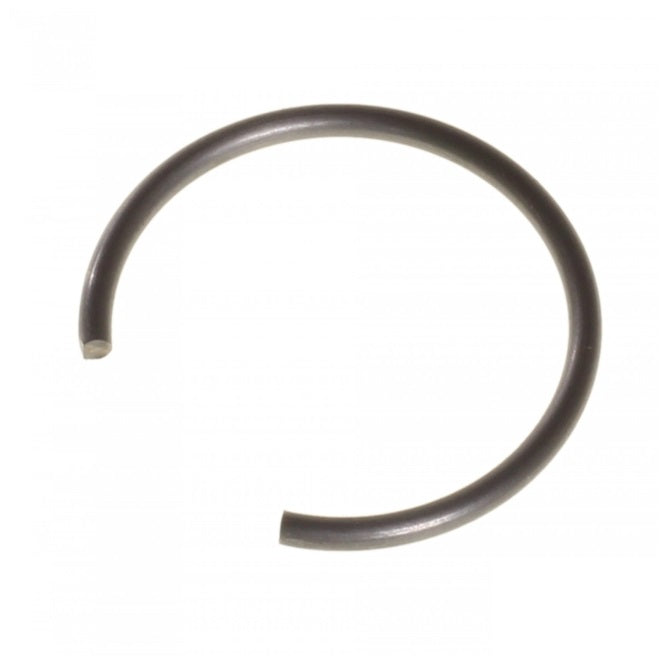

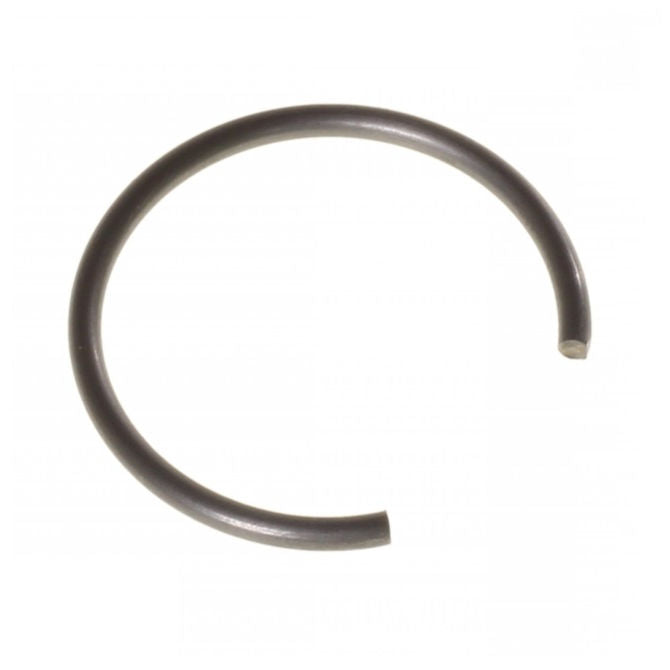

Retaining Rings - External - Round WireRound Wire External Retaining Rings. DIN7993A / RW / BN825. Retaining rings. Snap Rings (USA). Round section circlips.
- An expanded range may be available on special order. Please enquire.
- Round section wire rings are mostly used in semicircular grooves.
- Applications include gear systems, automotive engineering and open gudgeon pins.
Product Data
- Shaft Diameter (Ds)
:
9.53
mm
(Equiv. 0.375 in.) - Clip Thickness (T)
1.09
mm
+/- 0.10
(Equiv. 0.043 in.) - Groove Dia. (Dg)
8.87
mm
+ 0.08 / - 0.00
(Equiv. 0.349 in.) - Approx. Loose Circlip ID (A) 8.76 mm
- Radial Wall (S) min/max 8.87 mm
- Groove Width (W) 1.14 mm
- Free Outside Dia (Dr) 10.94
- Section Profile Round Section
- Info Radial Assembly - Open Gap
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton 200-419
- Arcon XRO-419
- NoCor XRO-419
- 200419
- XRO419
- WRE0095SRHO
