KF095P-069-6L-ST - Datasheet

MBA

Category Information

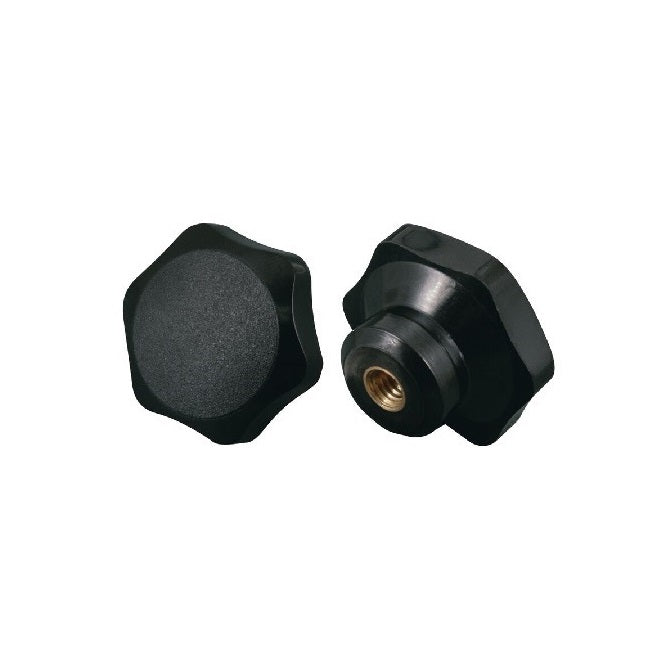

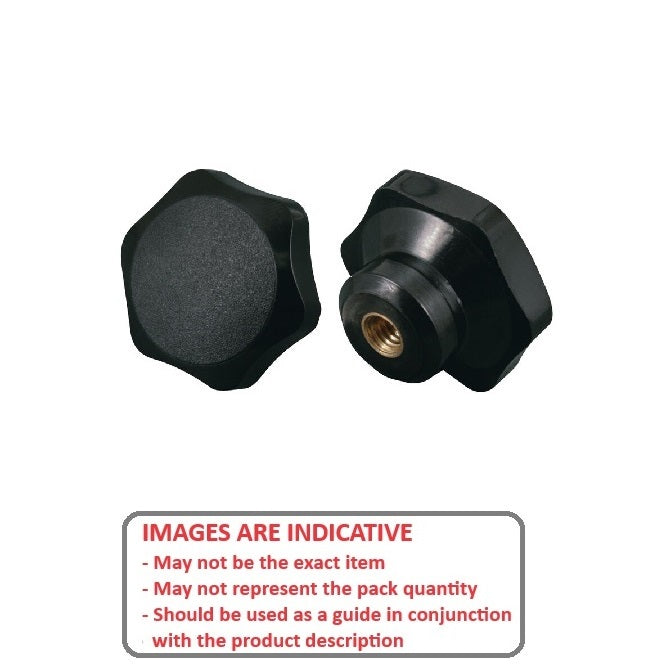

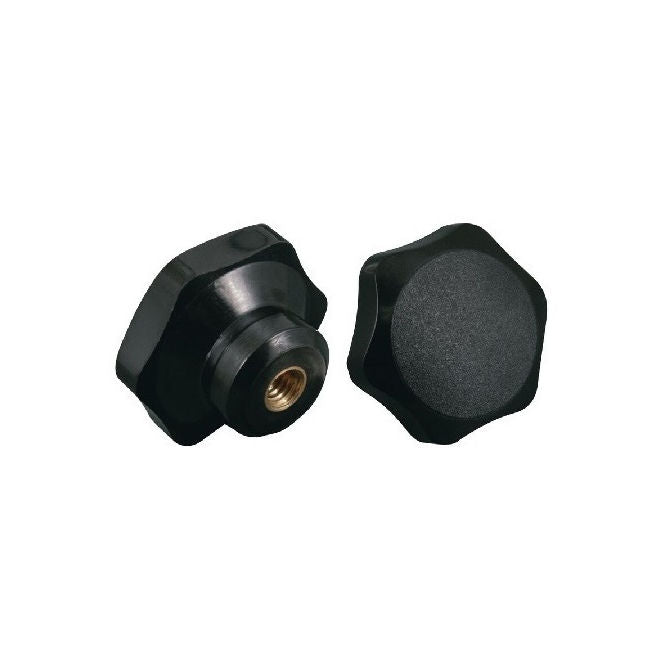

Knobs - Lobe - Six Lobe - Female - Standard

Standard Female Six Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 9.53 Unthreaded

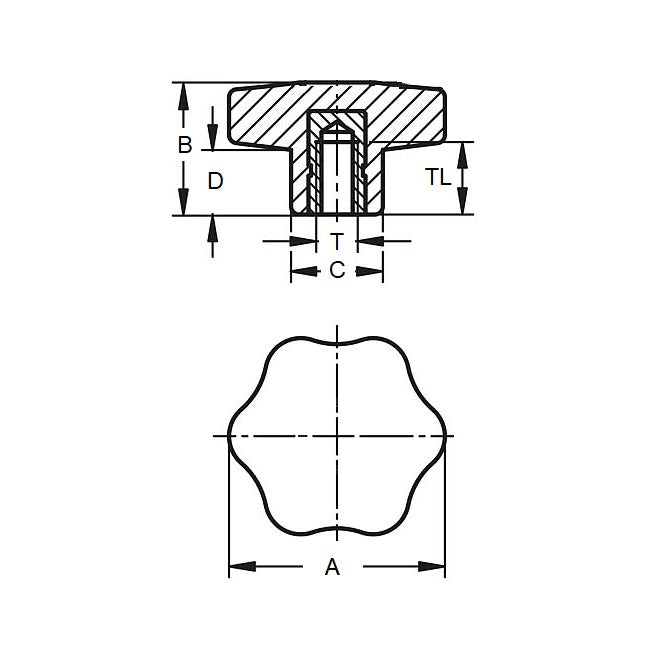

  • Head Diameter (A) 69.09 mm
    (Equiv. 2.72 in.)
  • Thread Length 24.9 mm
    (Equiv. 0.98 in.)
  • Colour Black
  • Hub Diameter (C) 29.97 mm
  • Hub Length (F) 33.02 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • KHN-35
  • KHN35
