KF095-051-OT-P - Datasheet
MBA
Category Information

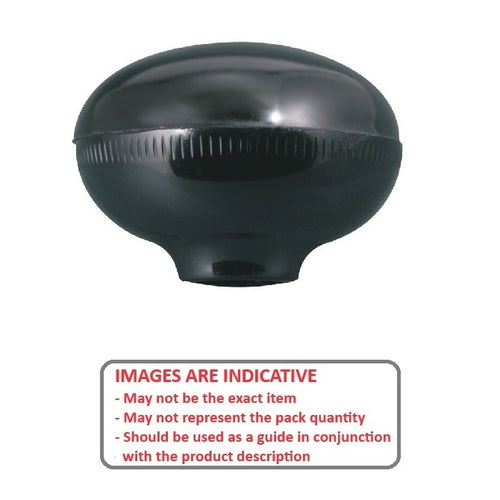

Knobs - Oval Tapered Press On PhenolicOval Tapered Press On Phenolic Knobs. Press on knobs hold on securely without threads or set screws
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
- Shaft diameter should be +0.000 / - 0.076 mm for best performance
- Knob is held in place by a ribbed insert that squeezes onto the shaft.
- Eliminates machining costs
- Knobs will not come off with normal use but can be removed by knocking with a hammer on the underside.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

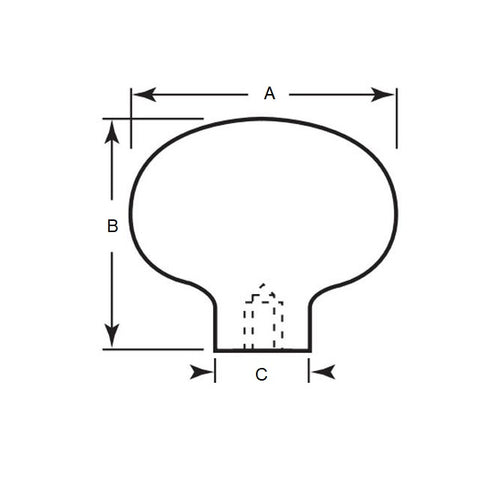

- Shaft Diameter : Push On 9.53 mm
- Diameter
50.80
mm
(Equiv. 2 in.) - Bore Depth
19.1
mm
(Equiv. 0.752 in.) - Length 9.5 mm
- Material Phenolic
Product Compliance and Data
Additional Resources
Cross References
- POK-75
- POK75
