Miniature Bearings Australia
LCHP-0095-024-CC - Datasheet
MBA
Category Information

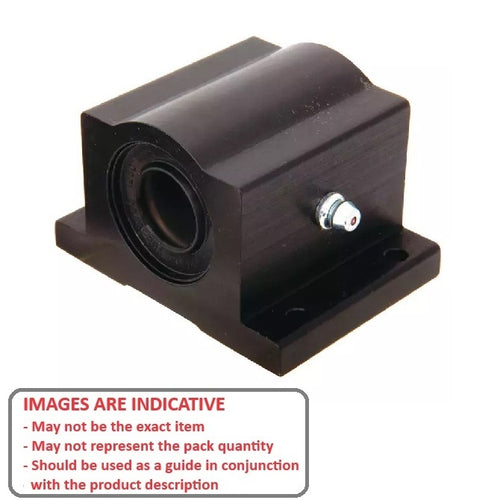

Linear - Housings Pillow Block Closed Ceramic CoatedHousings Pillow Block Closed Ceramic Coated Linear. Approved for direct food contact in applications where animal fat or food approved lubricants are present.
- Able to withstand rapid oscillation, contamination, shock/vibration, wash downs, submersion and shaft brinelling.
- DO NOT USE WD-40 or Silcone based spray lubricants.
Product Data

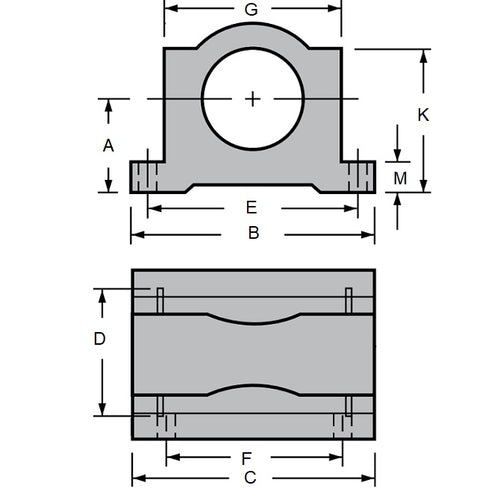

- Nominal Diameter
:
9.53
mm
(Equiv. 0.375 in.) - Widths (B x C)
44.45 x 33.34
mm
(Equiv. 1.75 in.) - Length (D)
23.81
mm
(Equiv. 0.937 in.) - Bolt Distances (E x F) 36.50 x 22.23 mm
- Bolt Hole Size 3.97 mm
- Height (K) 22.23 mm
- Centre Height (A) 12.70 mm
- G 28.58 mm
- M 4.76 mm
- Max Static Load Capacity 745.25 kg
Product Compliance and Data
Additional Resources
Cross References
- 6674K12
- LMB305
- LMB-305
