SJ-10RS - Datasheet
MBA
Category Information

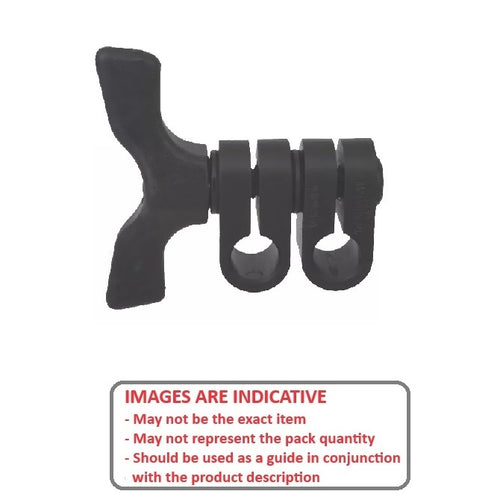

Joints - Swivel - Wing Knob - SteelSteel Wing Knob Swivel Joints. Precision made. Column lock feature. Will not become loose when adjusting. Universal design will fit any make of magnetic base, surface gauge or indicator. 12L14 Steel.
Product Data

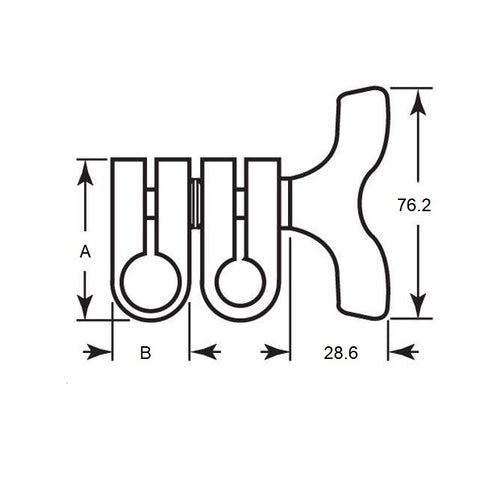

- Hole Size
:
9.53
mm
(Equiv. 0.375 in.) - Hole Size
12.70
mm
(Equiv. 0.5 in.) - A
38.100
mm
(Equiv. 1.5 in.)
