CP-095-095-22-035-R2-SC - Datasheet
MBA
Category Information

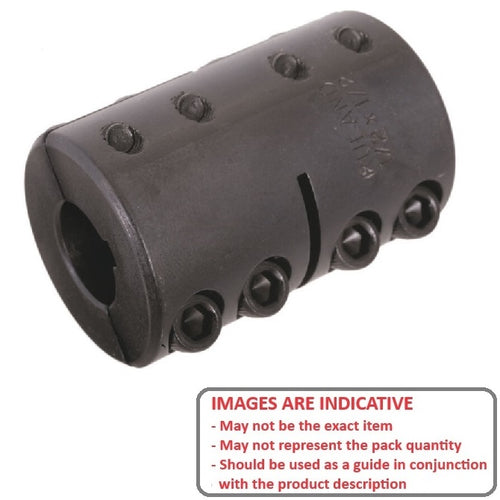

Couplings - Rigid - Clamp - 2 Piece Steel2 Piece Steel Clamp Rigid Couplings. 12L14 Steel
- An expanded range may be available on special order. Please enquire.
- Precision Machined
- High torsional load
- Non marring, easy to install and adjust. Assemble without moving shafts
- Use on hardened shafts, rigid clamp type design, easily machinable
- Black finish with alloy steel cap screws. Available with stepped bores and keyways on 5 week delivery.
Product Data

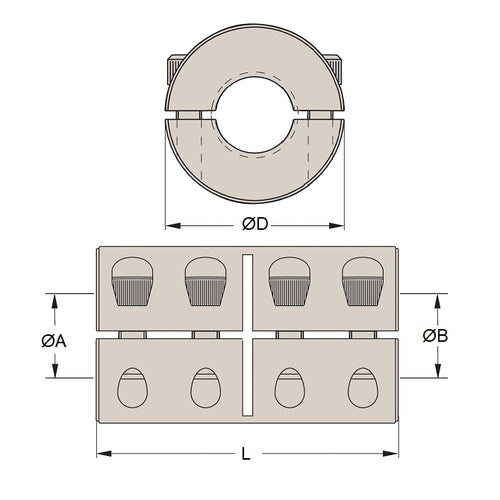

- Bore (b1)
:
9.525
mm
(Equiv. 0.375 in.) - Bore (b2)
9.525
mm
(Equiv. 0.375 in.) - OD (D)
22.250
mm
(Equiv. 0.876 in.) - Length (L) 34.920 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 60845K32
- CC503
- CC-503
