W0095-SQ-051064S4 - Datasheet
MBA
Category Information

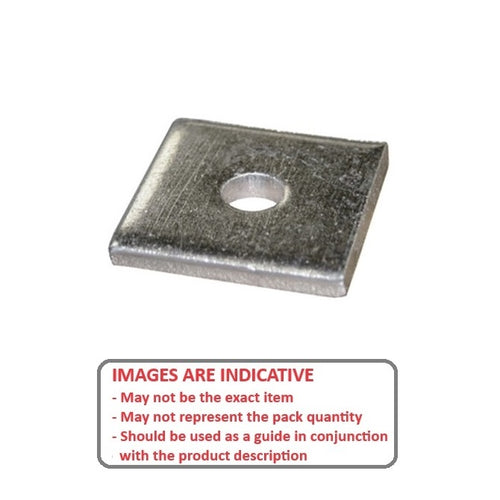

Washers - Square - Heavy Duty - 304 Stainless Steel304 Stainless Steel Heavy Duty Square Washers. 304 stainless steel selection.
- Square washers are designed to distribute loads and prevent rotation when placed in a square recess or used with square neck screws.
- Often used in structural applications where greater stability and load distribution are needed than what a standard round washer provides.
Product Data

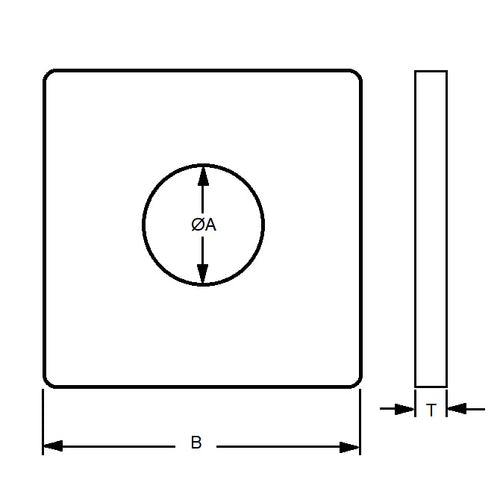

- Nominal Inside Diameter (A)
:
9.525
mm
(Equiv. 0.375 in.) - Outside Length (B)
50.8
mm
(Equiv. 2 in.) - Thickness
6.35
mm
(Equiv. 0.25 in.) - Actual ID (Ref) 11.113 mm
- Material Stainless Steel 303 PV (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 91122A115
- ASFW-25
- ASFW25
