BF0095-0056-0127-DS - Datasheet
MBA
Category Information

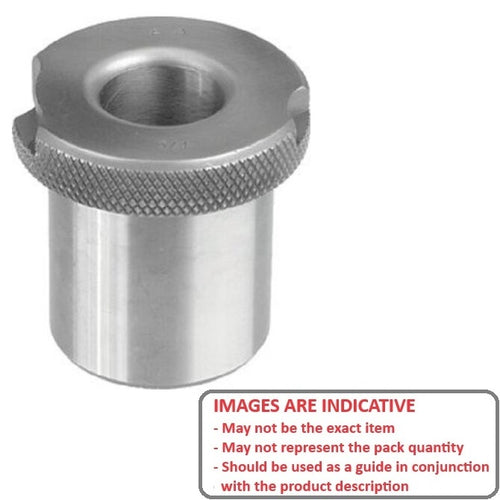

Bushings - Drill - Flanged - Slip FitSlip Fit Flanged Drill Bushings. Flanged slip fit selection. Harden steel
- Hardened metal component that provides a precise guide for cutting tools, ensuring accurate and repeatable hole placement in jigs and fixtures.
- Constrains the drill bit, it reduces tool deflection and tool wear, leading to more consistent holes and longer tool life.
- Hardness: RC 62-64
- Permanently pressed into the jig plate creating a precise location point. Used with fixed or slip renewable bushings.

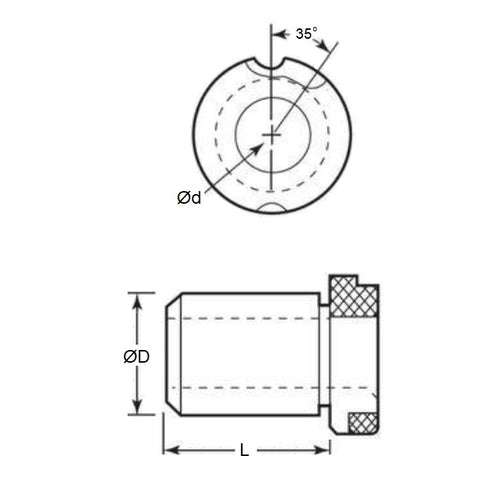

Product Data
- Outside Diameter (OD)
:
9.525
mm
+ 0.0000 / - 0.0051
(Equiv. 0.375 in.) - Drill Size
5.556
mm
+ 0.0025 / + 0.0102
(Equiv. 0.219 in.) - Length 12.700 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® BSF-16060
- BSF16060
