COL-00953-027-08-HG-S3 - Datasheet
MBA
Category Information

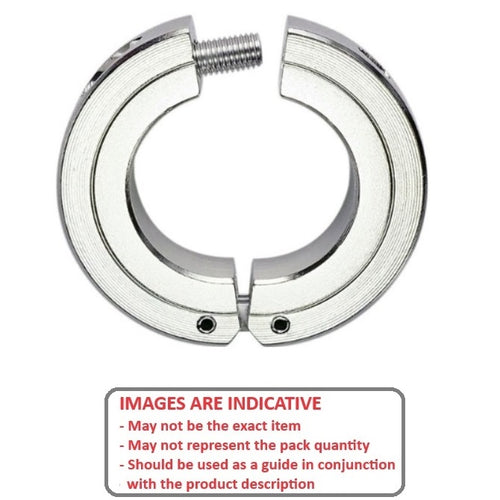

Collars - Shaft - Hinged - Stainless SteelStainless Steel Hinged Shaft Collars. Precision machined. Convenient easy-to-assemble design. 303 Stainless Steel
- Same axial load handling capabilities as standard two piece collars.
- Captive clamp screw eliminates lost screws.
- The collars have a smooth I.D., O.D. & sides with no protruding pins or screws.
- Easily Machinable / Open Completely.
- Non-marring / Use on hardened shafts / Use on tubing / Use on split hubs.
Product Data

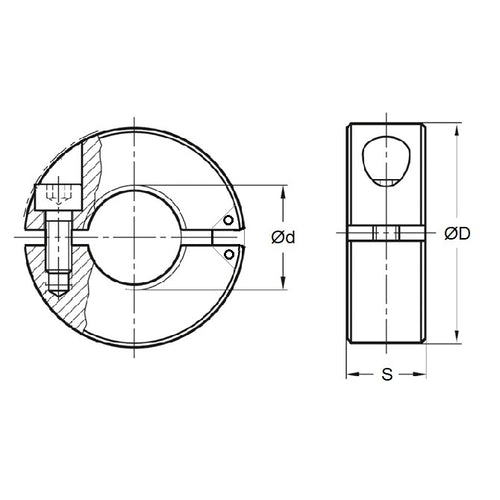

- Suitable Shaft Size (d)
:
9.525
mm
(Equiv. 0.375 in.) - Outside Diameter (D)
27.00
mm
(Equiv. 1.063 in.) - Overall Width (S)
8.0
mm
(Equiv. 0.315 in.) - Screw Size 6-32 UNC (3.5mm)
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- 57145K51
- CTC400SS
- CTC-400SS
