COH-00953-027-08-1P-AB - Datasheet

MBA

Category Information

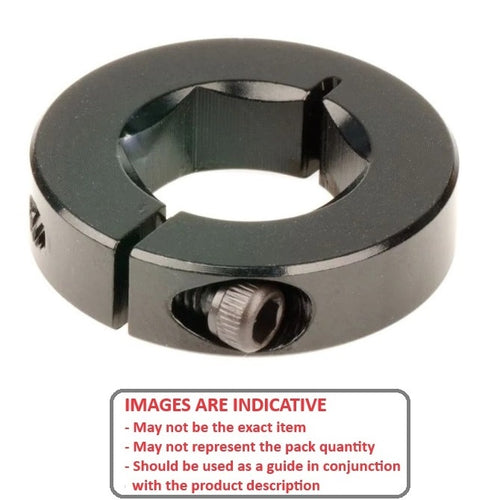

Collars - Hex Bore - One Piece - Steel

Steel One Piece Hex Bore Collars. This is the main category in this series

  • Simple, ring-shaped component, typically made of metal or plastic, that fastens around a hex shaped shaft to hold other parts in place or to act as a mechanical stop.
  • Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.

Product Data

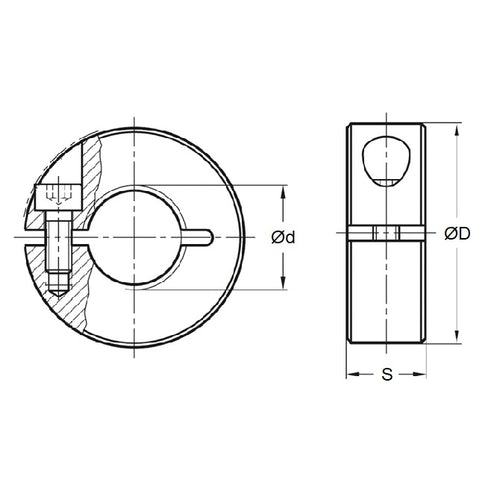

  • Suitable Shaft Size (d) : 9.525 mm
    (Equiv. 0.375 in.)
  • Outside Diameter (D) 27.00 mm
    (Equiv. 1.063 in.)
  • Overall Width (S) 8.0 mm
    (Equiv. 0.315 in.)
  • Screw Size 6-32 UNC (3.5mm)
  • Material Steel - Mild
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • CTC-502
  • CTC502
