COH-00953-027-08-1P-S3 - Datasheet
MBA
Category Information

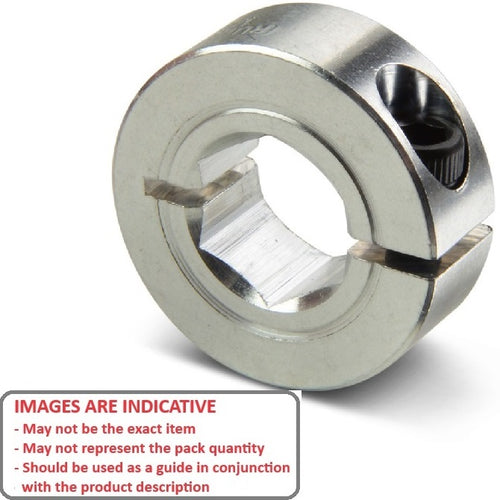

Collars - Hex Bore - One Piece - 303 Stainless Steel303 Stainless Steel One Piece Hex Bore Collars. This is the main category in this series
- Simple, ring-shaped component, typically made of metal or plastic, that fastens around a hex shaped shaft to hold other parts in place or to act as a mechanical stop.
- Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.
Product Data

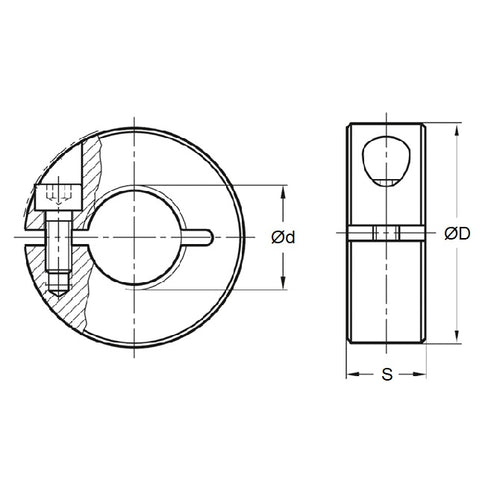

- Suitable Shaft Size (d)
:
9.525
mm
(Equiv. 0.375 in.) - Outside Diameter (D)
27.00
mm
(Equiv. 1.063 in.) - Overall Width (S)
7.9
mm
(Equiv. 0.311 in.) - Screw Size 6-32 UNC (3.5mm)
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- CTC-602
- CTC602
