R6A-CSN-Z-T9H-ECO - Datasheet

ECO

Category Information

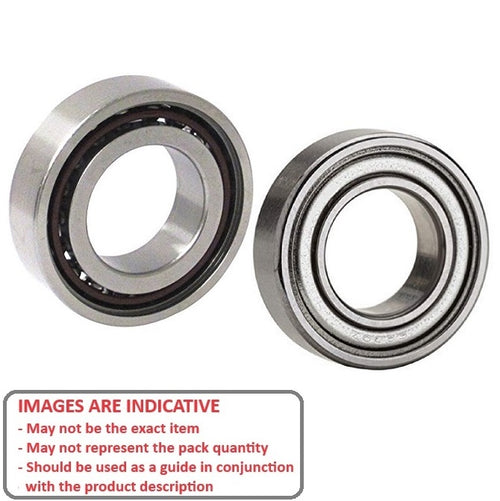

Bearings - Single Row Ball - Unflanged - Precision - Ceramic Hybrid

Ceramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
  • Bearings with steel races and ceramic balls.
  • For standard bearings, the balls are usually one of the first components to show wear.
  • Ceramic balls are harder than steel and do not wear as easily.
  • Items with high speed cages have the suffixes T9H, TNH, TW or KC

Product Data

High speed polyamide cage. Ceramic balls.

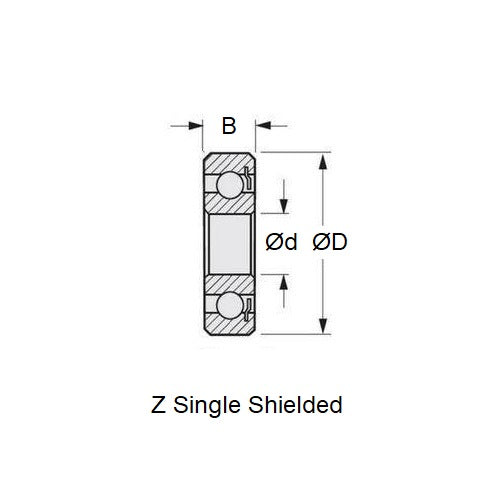

  • ID (d) : 9.525 mm
    (Equiv. 0.375 in.)
  • OD (D) 22.225 mm
    (Equiv. 0.875 in.)
  • Width (B) 7.142 mm
    (Equiv. 0.281 in.)
  • Precision Grade Abec 1
  • Closure Type Z
  • Bearing Type Radial
  • Material Chrome Steel SAE 52100 - High Speed Polyamide Cage - Ceramic Si3N4 Balls
  • Lubrication Type Grease
  • Lubrication Name Standard Unspecified
  • Basic Part R6A
  • Limiting Speed 48640
  • Cage Type Polyamide
  • Static Load Rating KGf 110.2
  • Dynamic Load Rating KGf 258.4
  • Radii 0.40 mm
  • Inner Shoulder (UI) 11.90mm
  • Outer Shoulder (UO) 19.90 mm
  • Number of Balls 7
  • Clearance ECO (5 to 23)
  • Precision Grade ECO
  • Closure Type Z
  • Max Temperature 120 Deg. C
Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

  • RC Nitro Engine Parts
  • ASP - 52 New - Front Bearing
  • ASP - S46A - Front Bearing
  • Bluebird - 2C - 28 - Bearing 9.53-22.23-7.14mm
  • CEN - NX-76 - 28 - Bearing 9.53-22.23-7.14mm
  • Chapman - DC - 46 - Bearing 9.53-22.23-7.14mm
  • Enya - 2C - 0.28 - Bearing 9.53-22.23-7.14mm
  • Enya - 2C 733 - 46 - Bearing 9.53-22.23-7.14mm
  • Enya - 2C SS - 60 - Bearing 9.53-22.23-7.14mm
  • Enya - 4C - 46 - Bearing 9.53-22.23-7.14mm
  • Enya - 4C - 60 - Bearing 9.53-22.23-7.14mm
  • Enya - 4C - 80 - Bearing 9.53-22.23-7.14mm
  • Enya - 4C - Old - 40 - Bearing 9.53-22.23-7.14mm
  • Enya - 50CX - 46 - Bearing 9.53-22.23-7.14mm
  • Enya - BB 6001 - 29 - Bearing 9.53-22.23-7.14mm
  • Enya - BB 6001 - 35 - Bearing 9.53-22.23-7.14mm
  • Enya - CX - 40 - Bearing 9.53-22.23-7.14mm
  • Enya - CX - 45 - Bearing 9.53-22.23-7.14mm
  • Enya - III - 120 - Bearing 9.53-22.23-7.14mm
  • Enya - III - 35 - Bearing 9.53-22.23-7.14mm
  • Enya - SS - 120 - Bearing 9.53-22.23-7.14mm
  • Enya - SS - 40 - Bearing 9.53-22.23-7.14mm
  • Enya - SS40BB - 50 - Bearing 9.53-22.23-7.14mm
  • Enya - TVBB - 40 - Bearing 9.53-22.23-7.14mm
  • Enya - X 2Cand3 - 19 - Bearing 9.53-22.23-7.14mm
  • Enya - XF 2C - 19 - Bearing 9.53-22.23-7.14mm
  • Enya - XF-4 - 60 - Bearing 9.53-22.23-7.14mm
  • Enya - XF-4H - 60 - Bearing 9.53-22.23-7.14mm
  • Horizon - Evolution - 25 - Bearing 9.53-22.23-7.14mm
  • Irvine - 40 All Models - Bearing 9.53-22.23-7.14mm
  • Irvine - 46 ABC - 12 - Bearing 9.53-22.23-7.14mm
  • Irvine - 46 All Models - Bearing 9.53-22.23-7.14mm
  • Irvine - MK2 - 61 - Bearing 9.53-22.23-7.14mm
  • K.B - 8702 - 3.5 21CC - Bearing 9.53-22.23-7.14mm
  • K.B - Fire - 7.5 - Bearing 9.53-22.23-7.14mm
  • K.B - Outboard Late Model Marine - 40 - Bearing 9.53-22.23-7.14mm
  • K.B - Outboard Marine - 3.5 - Bearing 9.53-22.23-7.14mm
  • K.B - Outboard Marine Late Model - 90 - Bearing 9.53-22.23-7.14mm
  • K.B - Pro - 67 - Bearing 9.53-22.23-7.14mm
  • K.B - SS Marine - 7.5 .45CC - Bearing 9.53-22.23-7.14mm
  • Magnum Power - 28 All Models - Bearing 9.53-22.23-7.14mm
  • Magnum Power - 4C - 120 - Bearing 9.53-22.23-7.14mm
  • Magnum Power - Pro - 36 - Bearing 9.53-22.23-7.14mm
  • Magnum Power - Pro - 40 - Bearing 9.53-22.23-7.14mm
  • Magnum Power - Pro - 45 - Bearing 9.53-22.23-7.14mm
  • Magnum Power - Pro SE - 61 - Bearing 9.53-22.23-7.14mm
  • Magnum Power - XLS - 36 - Bearing 9.53-22.23-7.14mm
  • Magnum Power - XLS - 40 - Bearing 9.53-22.23-7.14mm
  • Magnum Power - XLS 91A - 46 - Bearing 9.53-22.23-7.14mm
  • Magnum Power - XLS52A - 91 - Bearing 9.53-22.23-7.14mm
  • MDS - 58 All Models - Bearing 9.53-22.23-7.14mm
  • Mutunuc - Taiwan - 12 - Bearing 9.53-22.23-7.14mm
  • OS - ABC-P RC - 60 - Bearing 9.53-22.23-7.14mm
  • OS - AX - 46 - Bearing 9.53-22.23-7.14mm
  • OS - CZ-Z Recoil - 12 - Bearing 9.53-22.23-7.14mm
  • OS - F4 4-C - 320 - Bearing 9.53-22.23-7.14mm
  • OS - F4 4CYL - 32 - Bearing 9.53-22.23-7.14mm
  • OS - FP - 70 - Bearing 9.53-22.23-7.14mm
  • OS - FPS - 70 - Bearing 9.53-22.23-7.14mm
  • OS - FS - 40 - Bearing 9.53-22.23-7.14mm
  • OS - FS 70 II Surpass - 40 - Bearing 9.53-22.23-7.14mm
  • OS - FS 70 Surpass RC 4C - 20 - Bearing 9.53-22.23-7.14mm
  • OS - FS FI Surpass II - 70 - Bearing 9.53-22.23-7.14mm
  • OS - FS II Surpass With Pump 91 - Bearing 9.53-22.23-7.14mm
  • OS - FS RC 4C - 40 - Bearing 9.53-22.23-7.14mm
  • OS - FS RC 4C Non Surpass - 80 - Bearing 9.53-22.23-7.14mm
  • OS - FS Surpass II 4C - 12 - Bearing 9.53-22.23-7.14mm
  • OS - FS Surpass RC 4C 91 - 48 - Bearing 9.53-22.23-7.14mm
  • OS - FS70 II - 4 Stroke - Front Bearing
  • OS - FS70S - 4 Stroke - Front Bearing
  • OS - FS91S - 4 Stroke - Front Bearing
  • OS - FSR - 25 - Bearing 9.53-22.23-7.14mm
  • OS - FSR - 40 - Bearing 9.53-22.23-7.14mm
  • OS - FSR - 45 - Bearing 9.53-22.23-7.14mm
  • OS - FSR ABC - 45 - Bearing 9.53-22.23-7.14mm
  • OS - FSR ABC - 61 - Bearing 9.53-22.23-7.14mm
  • OS - FSR Gold Head - 45 - Bearing 9.53-22.23-7.14mm
  • OS - FSR RC Special - 90 - Bearing 9.53-22.23-7.14mm
  • OS - FSR RC W-Muffler - 40 - Bearing 9.53-22.23-7.14mm
  • OS - FSR RC W-Muffler - 91 - Bearing 9.53-22.23-7.14mm
  • OS - FSR Ring ED - 108 - Bearing 9.53-22.23-7.14mm
  • OS - FSRH - 40 - Bearing 9.53-22.23-7.14mm
  • OS - FSR-H RC - 61 - Bearing 9.53-22.23-7.14mm
  • OS - FSR-S W-Muffler - 90 - Bearing 9.53-22.23-7.14mm
  • OS - FT 12 Twin RC 4C - 45 - Bearing 9.53-22.23-7.14mm
  • OS - FT Twin 120 II - 45 - Bearing 9.53-22.23-7.14mm
  • OS - FT Twin RC 4C - 12 - Bearing 9.53-22.23-7.14mm
  • OS - FT Twin RC 4C - 120 - Bearing 9.53-22.23-7.14mm
  • OS - FX - 25 - Bearing 9.53-22.23-7.14mm
  • OS - FX - 40 - Bearing 9.53-22.23-7.14mm
  • OS - FX - 61 - Bearing 9.53-22.23-7.14mm
  • OS - FX-H Ring - 91 - Bearing 9.53-22.23-7.14mm
  • OS - FXI - 46 - Bearing 9.53-22.23-7.14mm
  • OS - H - 46 - Bearing 9.53-22.23-7.14mm
  • OS - HWC - 60 - Bearing 9.53-22.23-7.14mm
  • OS - Old FF 4 CYL - 61 - Bearing 9.53-22.23-7.14mm
  • OS - Old FT Twin 4C - 240 - Bearing 9.53-22.23-7.14mm
  • OS - Old FT Twin 4C - 25 - Bearing 9.53-22.23-7.14mm
  • OS - RF ABC LS - 40 - Bearing 9.53-22.23-7.14mm
  • OS - RF ABC RC - 61 - Bearing 9.53-22.23-7.14mm
  • OS - RF-H Pump - 21 - Bearing 9.53-22.23-7.14mm
  • OS - RF-H RC With 7H - 21 - Bearing 9.53-22.23-7.14mm
  • OS - RF-HS - 61 - Bearing 9.53-22.23-7.14mm
  • OS - RF-P - 61 - Bearing 9.53-22.23-7.14mm
  • OS - RF-P Hanno Special - 61 - Bearing 9.53-22.23-7.14mm
  • OS - RF-P Ring Hanno Special - 61 - Bearing 9.53-22.23-7.14mm
  • OS - RX-H - 140 - Bearing 9.53-22.23-7.14mm
  • OS - RX-HGL - 61 - Bearing 9.53-22.23-7.14mm
  • OS - SF - 25 - Bearing 9.53-22.23-7.14mm
  • OS - SF - 40 - Bearing 9.53-22.23-7.14mm
  • OS - SF - 46 - Bearing 9.53-22.23-7.14mm
  • OS - SF ABC - 61 - Bearing 9.53-22.23-7.14mm
  • OS - SF ABC RC - 61 - Bearing 9.53-22.23-7.14mm
  • OS - SF ABC RC W-Muffler - 40 - Bearing 9.53-22.23-7.14mm
  • OS - SF RC W-Muffler - 40 - Bearing 9.53-22.23-7.14mm
  • OS - SF RC W-Muffler - 61 - Bearing 9.53-22.23-7.14mm
  • OS - SF Ring - 40 - Bearing 9.53-22.23-7.14mm
  • OS - SF Ring - 46 - Bearing 9.53-22.23-7.14mm
  • OS - SF-H ABC RC LS - 61 - Bearing 9.53-22.23-7.14mm
  • OS - SF-H RC - 61 - Bearing 9.53-22.23-7.14mm
  • OS - SF-H RC LS - 46 - Bearing 9.53-22.23-7.14mm
  • OS - SF-HP RC - 61 - Bearing 9.53-22.23-7.14mm
  • OS - SF-HS - 61 - Bearing 9.53-22.23-7.14mm
  • OS - SFN-H RC With 7H - 46 - Bearing 9.53-22.23-7.14mm
  • OS - SF-P - 46 - Bearing 9.53-22.23-7.14mm
  • OS - SF-P - 61 - Bearing 9.53-22.23-7.14mm
  • OS - SF-P RC/Pump - 61 - Bearing 9.53-22.23-7.14mm
  • OS - SF-P Ring - 61 - Bearing 9.53-22.23-7.14mm
  • OS - SF-S ABC W-Muffler - 40 - Bearing 9.53-22.23-7.14mm
  • OS - SF-S ABC W-Muffler - 46 - Bearing 9.53-22.23-7.14mm
  • OS - SR 2C Old - 61 - Bearing 9.53-22.23-7.14mm
  • OS - SX - 32 - Bearing 9.53-22.23-7.14mm
  • OS - SX-H - 32 - Bearing 9.53-22.23-7.14mm
  • OS - SX-H - 50 - Bearing 9.53-22.23-7.14mm
  • OS - SX-H Ring - 61 - Bearing 9.53-22.23-7.14mm
  • OS - SX-H Ring C Spec - 91 - Bearing 9.53-22.23-7.14mm
  • OS - SX-H Ring C Spec With Pump - 91 - Bearing 9.53-22.23-7.14mm
  • OS - SX-H Ring Hyper - 91 - Bearing 9.53-22.23-7.14mm
  • OS - SX-HGL WC - 50 - Bearing 9.53-22.23-7.14mm
  • OS - SZ-H - 37 - Bearing 9.53-22.23-7.14mm
  • OS - SZ-H - 70 - Bearing 9.53-22.23-7.14mm
  • OS - VF - 18 - Bearing 9.53-22.23-7.14mm
  • OS - VF ABC RC - 25 - Bearing 9.53-22.23-7.14mm
  • OS - VF ABC RC - 61 - Bearing 9.53-22.23-7.14mm
  • OS - VF-H ABC - 25 - Bearing 9.53-22.23-7.14mm
  • OS - VF-H RC With 7H - 25 - Bearing 9.53-22.23-7.14mm
  • OS - VF-P - 61 - Bearing 9.53-22.23-7.14mm
  • OS - VR - 30 - Bearing 9.53-22.23-7.14mm
  • OS - VR ABC RC - 48 - Bearing 9.53-22.23-7.14mm
  • OS - VR-DF - 46 - Bearing 9.53-22.23-7.14mm
  • OS - VR-DF Heat Sink Head - 46 - Bearing 9.53-22.23-7.14mm
  • OS - VR-DF Small Head - 77 - Bearing 9.53-22.23-7.14mm
  • OS - VR-M - 40 - Bearing 9.53-22.23-7.14mm
  • OS - VR-M Marine - 40 - Bearing 9.53-22.23-7.14mm
  • OS - VR-M Marine - 77 - Bearing 9.53-22.23-7.14mm
  • OS - WC - 21 - Bearing 9.53-22.23-7.14mm
  • Power Racing - 46 - 26 - Bearing 9.53-22.23-7.14mm
  • RJL - 3.5 All Models - Bearing 9.53-22.23-7.14mm
  • Royal - 28 All Models - Bearing 9.53-22.23-7.14mm
  • Royal - 40 All Models - Bearing 9.53-22.23-7.14mm
  • Royal - Signature - 45 - Bearing 9.53-22.23-7.14mm
  • Saito - 130 - 120 - Bearing 9.53-22.23-7.14mm
  • Saito - 4C New - 56 - Bearing 9.53-22.23-7.14mm
  • Saito - 56 - Bearing 9.53-22.23-7.14mm
  • Saito - 72 All Models - Bearing 9.53-22.23-7.14mm
  • Saito - FA 65 - Bearing 9.53-22.23-7.14mm
  • Saito - FA 80 - Bearing 9.53-22.23-7.14mm
  • Saito - FA 90 - Bearing 9.53-22.23-7.14mm
  • Super Tigre - X - 60 - Bearing 9.53-22.23-7.14mm
  • Thunder Tiger - EK4 - 15 - Bearing 9.53-22.23-7.14mm
  • Thunder Tiger - H - 12 - Bearing 9.53-22.23-7.14mm
  • Thunder Tiger - Pro - 36 - Bearing 9.53-22.23-7.14mm
  • Thunder Tiger - Pro - 46 - Bearing 9.53-22.23-7.14mm
  • Thunder Tiger - Pro - 61 - Bearing 9.53-22.23-7.14mm
  • Thunder Tiger - Pro H - 39 - Bearing 9.53-22.23-7.14mm
  • Thunder Tiger - Pro H - 46 - Bearing 9.53-22.23-7.14mm
  • Thunder Tiger - Pro H - 90 - Bearing 9.53-22.23-7.14mm
  • Thunder Tiger - Pro H BB - 50 - Bearing 9.53-22.23-7.14mm
  • Veco - 19 All Models - Bearing 9.53-22.23-7.14mm
  • Webra - 4-C ROTARY - 61 - Bearing 9.53-22.23-7.14mm
  • YS - 140DZ - 24.7 - Bearing 9.53-22.23-7.14mm
  • YS - 160DZ - 24.7 - Bearing 9.53-22.23-7.14mm
  • YS - 2-C - 24.7 - Bearing 9.53-22.23-7.14mm
  • YS - 45 All Models - Bearing 9.53-22.23-7.14mm
  • YS - 4-C - 160 - Bearing 9.53-22.23-7.14mm
  • YS - 61 All Models - Bearing 9.53-22.23-7.14mm
  • YS - 80 - 91 - Bearing 9.53-22.23-7.14mm
  • YS - 80 ST - 80 - Bearing 9.53-22.23-7.14mm
  • YS - Air Chamber - 61 - Bearing 9.53-22.23-7.14mm
  • YS - FZ - 60 - Bearing 9.53-22.23-7.14mm
  • YS - FZ 10 - 120 - Bearing 9.53-22.23-7.14mm
  • YS - L - 53 - Bearing 9.53-22.23-7.14mm
  • YS - New - 53 - Bearing 9.53-22.23-7.14mm
  • YS - Old - 140 - Bearing 9.53-22.23-7.14mm
  • YS - PART S - 120 - Bearing 9.53-22.23-7.14mm
  • YS - ST H - 120 - Bearing 9.53-22.23-7.14mm
  • YS - ST2 61 Heli - 61 - Bearing 9.53-22.23-7.14mm
  • YS - ST4 91 Heli - 61 - Bearing 9.53-22.23-7.14mm
  • YS - SZ - 61 - Bearing 9.53-22.23-7.14mm

Cross References

  • BOCA R6ZC-TH9-C3
  • R6ZCTH9C3
  • R6ACSNT9HZC823ECO
  • R6ACSNT9HZECO
  • R6A Basic Size Ref
View full details
R6A-CSN-Z-T9H-ECODiagramR6A-CSN-Z-T9H-ECOImage
