P-R6A-KGL - Datasheet

KMS

Category Information

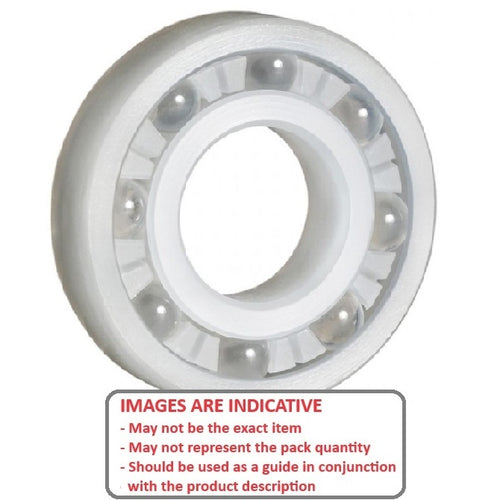

Bearings - Plastic - PVDF - Glass Balls

Glass Balls PVDF Plastic Bearings. Bearings for Extreme Corrosion Resistance - Low Speed - Low Load.

  • Plastic bearings, also known as polymer bearings, are bearings made from various types of plastics or polymer materials. Used in a wide range of applications across different industries where traditional metal bearings may not be suitable.
  • These bearings offer unique advantages such as corrosion resistance, low friction, lightweight construction, and non-magnetic properties. Uses include Food and Beverage Industry, Medical and Laboratory Equipment, Chemical Industry,HVAC Systems.
  • Plastic ball bearings do not use the same precision standards as those for precision ball bearings. An expanded range may be available on special order. Please enquire.
  • Races made from PVDF - Balls made from 316 Stainless Steel - Cages from PVDF
  • Kynar® PVDF (Polyvinylidene Fluoride) is a high performance engineering polymer
  • Kynar® has provided superior chemical resistance properties in critical contact applications for food, pharmaceutical, and semiconductor industries for over 20 years.
  • For chemical and high temperature resistance, low permeability and high mechanical strength.

Product Data

  • ID (d) : 9.525 mm + 0.076 / - 0.000
    (Equiv. 0.375 in.)
  • OD (D) 22.225 mm + 0.000 / - 0.102
    (Equiv. 0.875 in.)
  • Width (B) 7.142 mm + 0.127 / - 0.000
    (Equiv. 0.281 in.)
  • Max RPM in Air 1600
  • Notes Unlubricated
  • Type Radial
  • Dynamic Load Rating 19.6 Kg
  • Static Load Rating 15.4 Kg
  • Material PVDF with Glass Balls
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • KMS KR6A-G
  • KR6AG
