WR6D-2PE-MAX - Datasheet

ECO

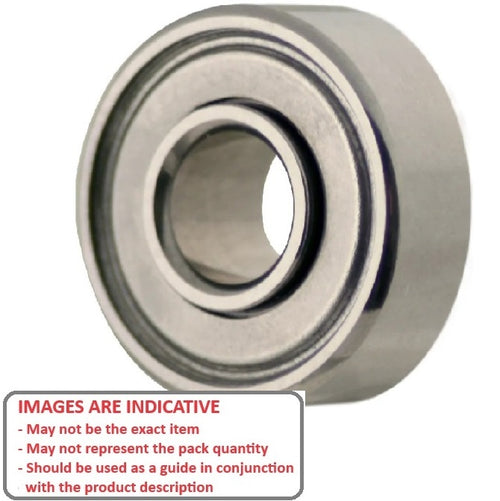

Extended Inner Precision Unflanged Single Row Ball Bearings. Single row radial ball bearings with extended inner ring (wide inner ring).

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
If the size you require is not available, you might consider using a standard bearing with shim washers.

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

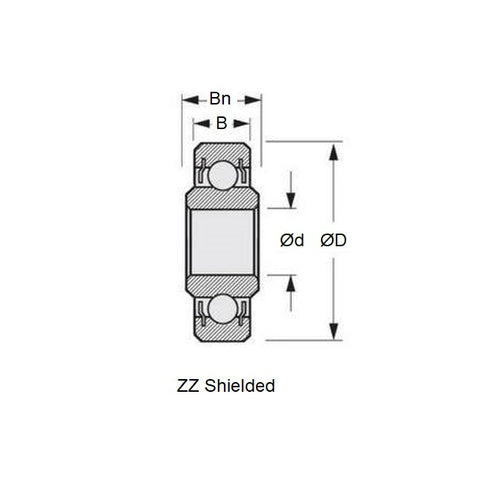

ID (d) : 9.525 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.375 in.)
OD (D) 22.225 mm _{+ 0.000 / - 0.010}
(Equiv. 0.875 in.)
Width (B) 6.350 mm _{+ 0.000 / - 0.125}
(Equiv. 0.25 in.)
Inner Ring Width (Bn) 7.950 mm
Precision Grade Abec 1
Closure Type 2PE
Bearing Type Radial with Extended Inner
Maximum Capacity Design for Bike Applications. Shields with poyethylene under-seal.
Material Chrome Steel SAE 52100

Country of Origin: TW
