R6-CSN-T9H-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Ceramic HybridCeramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Bearings with steel races and ceramic balls.
- For standard bearings, the balls are usually one of the first components to show wear.
- Ceramic balls are harder than steel and do not wear as easily.
- Items with high speed cages have the suffixes T9H, TNH, TW or KC
Product Data

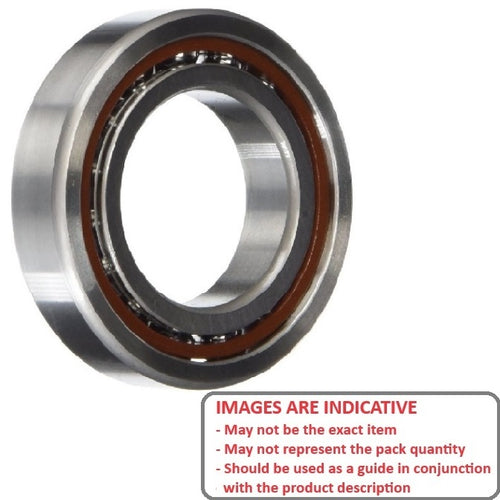

Open economy ceramic-hybrid bearing with a high speed polyamide retainer
- ID (d) : 9.525 mm
- O.D. (D) 22.225 mm
- Width (B) 5.556 mm
- Precision Grade Abec 1
- Closure Type Open
- Bearing Type Radial
- Material Chrome Steel SAE 52100 - High Speed Polyamide Cage - Ceramic Si3N4 Balls
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part R6
- Limiting Speed 48640
- Cage Type Polyamide
- Static Load Rating KGf 110.2
- Dynamic Load Rating KGf 258.4
- Radii 0.40 mm
- Inner Shoulder (UI) 12.80mm
- Outer Shoulder (UO) 18.70 mm
- Number of Balls 7
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type Open
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Nitro Engine Parts
- Dooling® - 0 - 40 - Bearing
- Fox® - 0.17 - Bearing
- Fox® - 15 All Models - Bearing
- Fox® - 40 All Models - Bearing
- Fox® - 40 With Tapered Collect - 78 - Bearing
- Fox® - MK VII - 60 - Bearing
- Fox® - Quickie - 36 - Bearing
- Fox® - Quickie - 40 - Bearing
- Fox® - Quickie - 74 - Bearing
- Irvine® - SP ABC - 15 - Bearing
- K.B - 3.5 21CC All Models - Bearing
- K.B - 7.5 All Models - Bearing
- K.B - DF - 91 - Bearing
- K.B - IB - 11 - Bearing
- K.B - IB - 25 - Bearing
- K.B - IB New - 6.5 - Bearing
- K.B - IB New - 7.5 - Bearing
- K.B - Inboard Late Model - 90 - Bearing
- K.B - New - 1 - Bearing
- K.B - Schnuerle - Bearing
- K.B - Schnuerle - 7.5 .45CC - Bearing
- Kraft® - 61 - 67 - Bearing
- McCoy - Old 1946 - 15 - Bearing
- Nelson - Combat - 75 - Bearing
- OPS - 45 All Models - Bearing
- OPS - 65 All Models - Bearing
- Webra® - 61 FS Speed - T46 - Bearing
- Webra® - Blackhead - 60 - Bearing
- Webra® - DF - 2.2 - Bearing
- Webra® - Quickee 500 - 32 - Bearing
- Webra® - RI Speed - 40 - Bearing
- Webra® - Speed - 120 - Bearing
- Webra® - Speed GT With TN II - 50 - Bearing
Cross References
- BOCA® R6NC-TH9-C3
- R6NCTH9C3
- R6 Basic Size Ref
