COL-00953-019-10-CS - Datasheet
MBA
Category Information

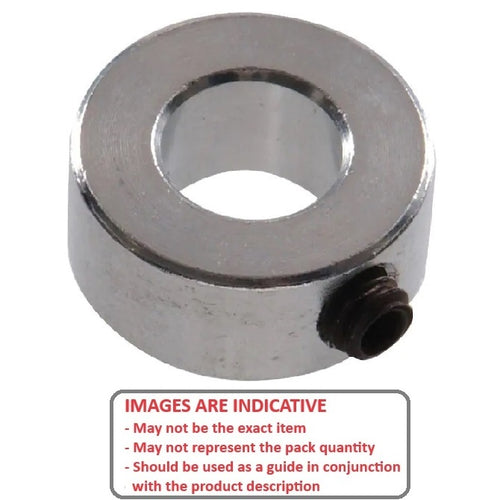

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
9.525
mm
+ 0.051 / - 0.000
(Equiv. 0.375 in.) - Outside Diameter (D)
19.10
mm
(Equiv. 0.752 in.) - Overall Width (S)
9.5
mm
(Equiv. 0.374 in.) - Screw Size 1/4-20 x 3/16
- Collar Style Plain Collar
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 9414T8
- Small Parts SC-6
- A7C2-12412
- A7C212412
